Description

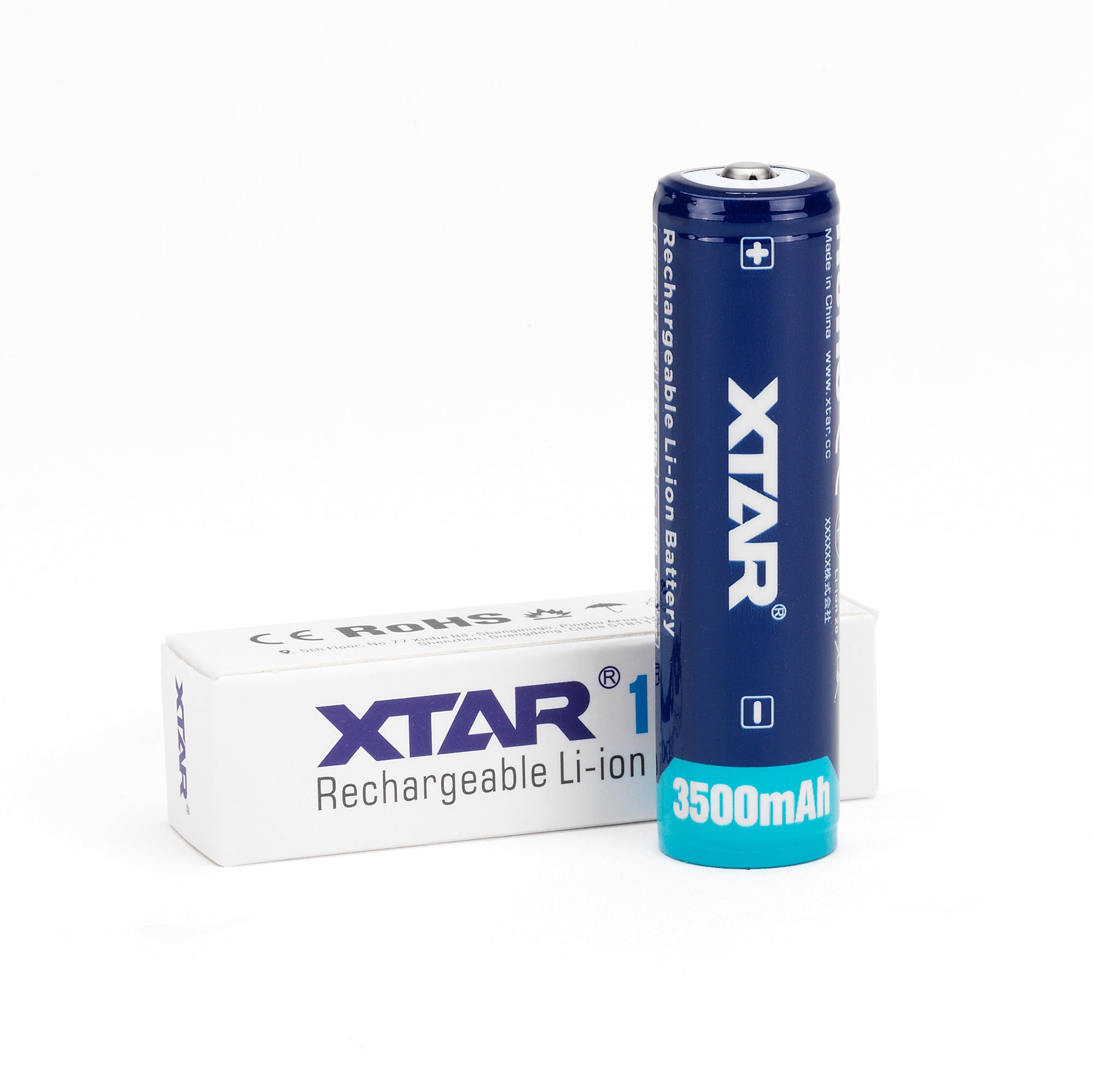

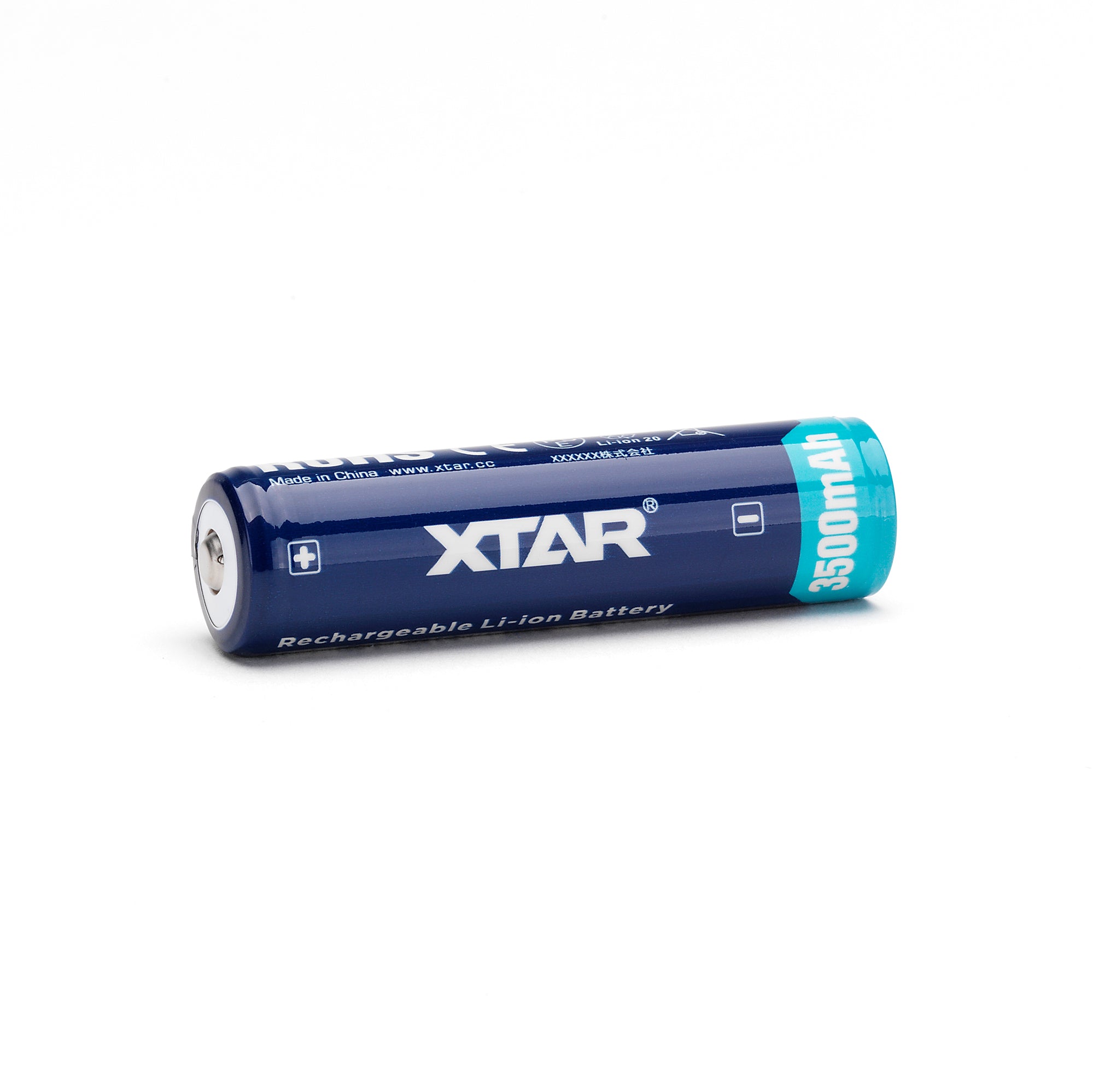

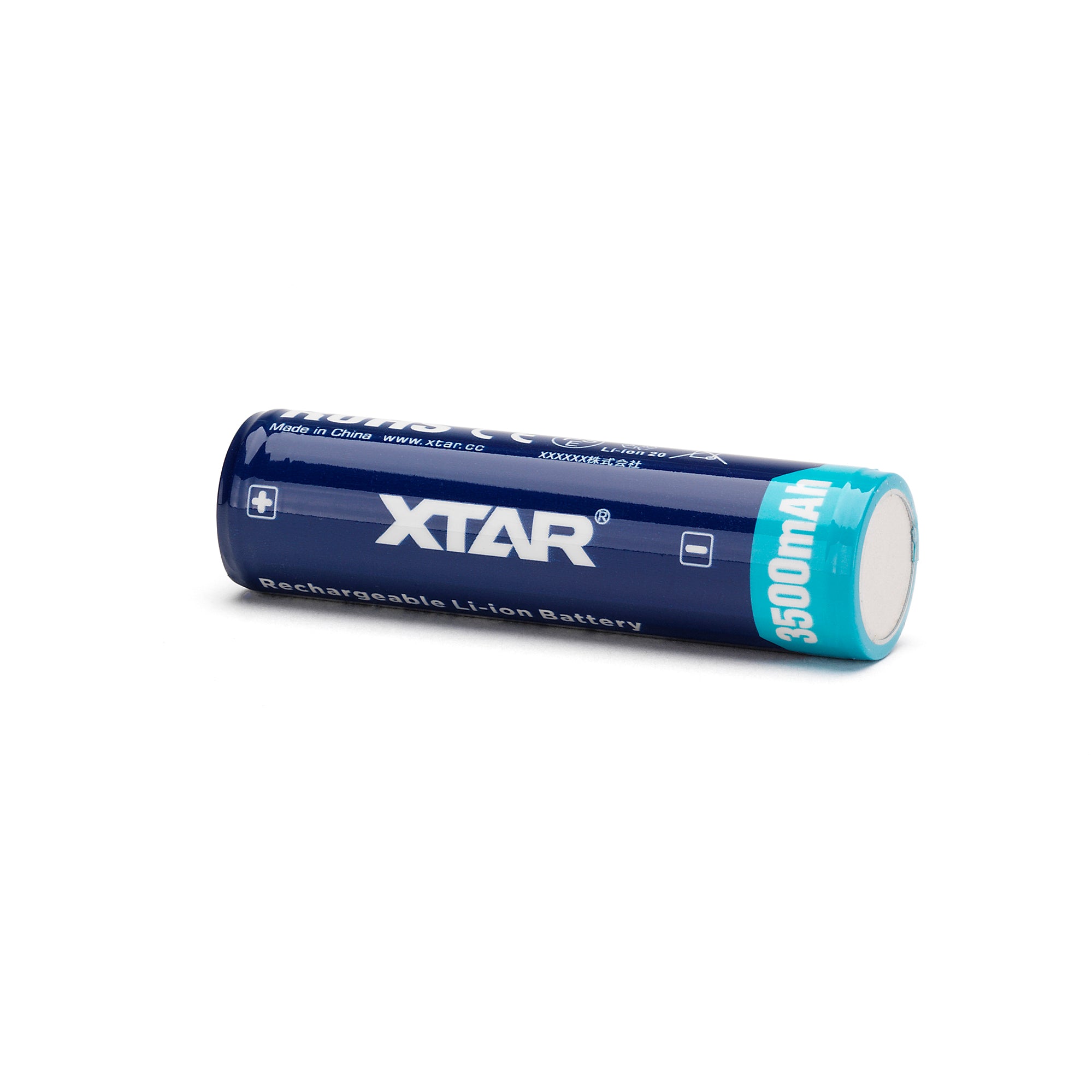

Experience superior power and enhanced safety with the XTAR 18650 3500mAh 10A Battery. This high-capacity, protected button top battery is designed with an integrated protection circuit board (PCB) that safeguards against overcharge, over-discharge, over-current, and short circuits. It boasts a substantial 3500mAh capacity and a high discharge rate of 10A, making it perfect for high-demand applications. The specialized design includes an extended length to accommodate the protective features, ensuring your devices run safely and efficiently.
Note: This is a button top protected 18650 battery which is longer than a standard flat top unprotected 18650 battery.
- High Capacity: 3500mAh capacity provides extensive power, ideal for demanding devices and extended use.
- High Discharge Rate: Capable of a maximum continuous discharge of 10A, suitable for high-performance electronics.
- Comprehensive Protection: Features a built-in PCB that prevents common battery-related hazards, enhancing usage safety.
- Extended Form Factor: Measures 18.4mm x 69.1mm, designed to incorporate essential safety mechanisms within a compact structure.
- Durable and Reliable: Manufactured by XTAR, known for producing high-quality, reliable batteries with consistent performance.
SPECIFICATIONS
| Manufacturer: | XTAR |
| Size: | 18650 |
| Positive Terminal: | Button Top |
| Protected: | Yes, PCB. |
| Nominal Capacity: | 3500mAh |
| Discharge Current: | 10A Maximum Continuous |
| Nominal Voltage: | 3.6V |
| Maximum Voltage: | 4.2V |
| Approx. Dimensions: | 18.4mm x 69.1mm |
| Approx. Weight: | 48.4g |
| Country of Origin: | China |
⚠ Important Safety Warnings
While this battery is equipped with built-in protection circuitry to help prevent overcharging, over-discharging, and short circuits, improper handling or misuse can still result in FIRE, EXPLOSION, or THERMAL RUNAWAY, causing personal injury or property damage. Users must read and follow all safety guidelines before purchase and use. Click here to review the full safety guidelines.
- Intended Use: This battery is designed for use in flashlights, headlamps, and similar devices that require a button top configuration. Ensure compatibility with your device before use.
- Protection Circuit Limitations: While the protection circuit provides additional safety, it cannot prevent damage caused by misuse, including exposure to liquids, extreme heat, or physical damage.
- Storage & Transport: Always store batteries in protective cases to prevent accidental contact with metal objects (e.g., keys, coins, tools) that can cause a short circuit. Do not store loose batteries in pockets, bags, or other uncontrolled environments.
- Inspection: Do not use if the battery is dented, leaking, bulging, or if the outer wrapper or button top is damaged.
- Charging: Use a smart charger specifically designed for button top protected batteries. Do not exceed the battery's voltage and current specifications. Never leave the battery unattended while charging.
-
Prohibited Activities:
- Do not expose the battery to water, fire, or high heat.
- Do not modify, puncture, crush, or attempt to disassemble the battery.
- Do not use the battery if it becomes unusually hot during use or charging.
- Emergency Response: If the battery overheats, emits smoke, or shows other signs of failure, stop using it immediately. Move the battery to a safe, non-flammable surface (e.g., sand or concrete) and follow emergency protocols.
Disclaimer
IMR Batteries is not responsible for any damages, injuries, or claims arising from improper use, handling, or failure to follow these safety guidelines. Lithium-ion batteries require strict adherence to all safety protocols.
It is the reseller's responsibility to ensure all product warnings and safety guidelines are effectively communicated to their customers. Some cells are sold in bulk packaging and are not individually packaged. Resellers must provide appropriate packaging for each individual cell sold and must not distribute cells loose, unprotected, or without a proper storage box or case.
Product compatibility is the sole responsibility of the customer. IMR Batteries does not guarantee compatibility with any specific device or application. We are not responsible for the design, assembly, performance, or safety of any battery pack constructed using our cells. It is the customer’s responsibility to ensure proper cell matching, protection circuitry, configuration, and safe construction practices.
Users and resellers assume full responsibility for the safe handling, usage, and distribution of this product.
