Key Features
- 6000mAh High Capacity: More runtime per cell — less time charging, more time performing.
- High-Output Performance: 60A continuous discharge in a high-energy cell body, a combination most 21700s simply can't match.
- Extreme Current Capability: Peak discharge above 160A handles hard current spikes without flinching.
- Ultra-Low Resistance Design: Sub-3mΩ AC internal resistance keeps voltage sag tight and heat generation minimal under heavy loads.
- Professional Integration Cell: Unprotected flat-top design lets your BMS do its job — full external control, no compromises.
Overview

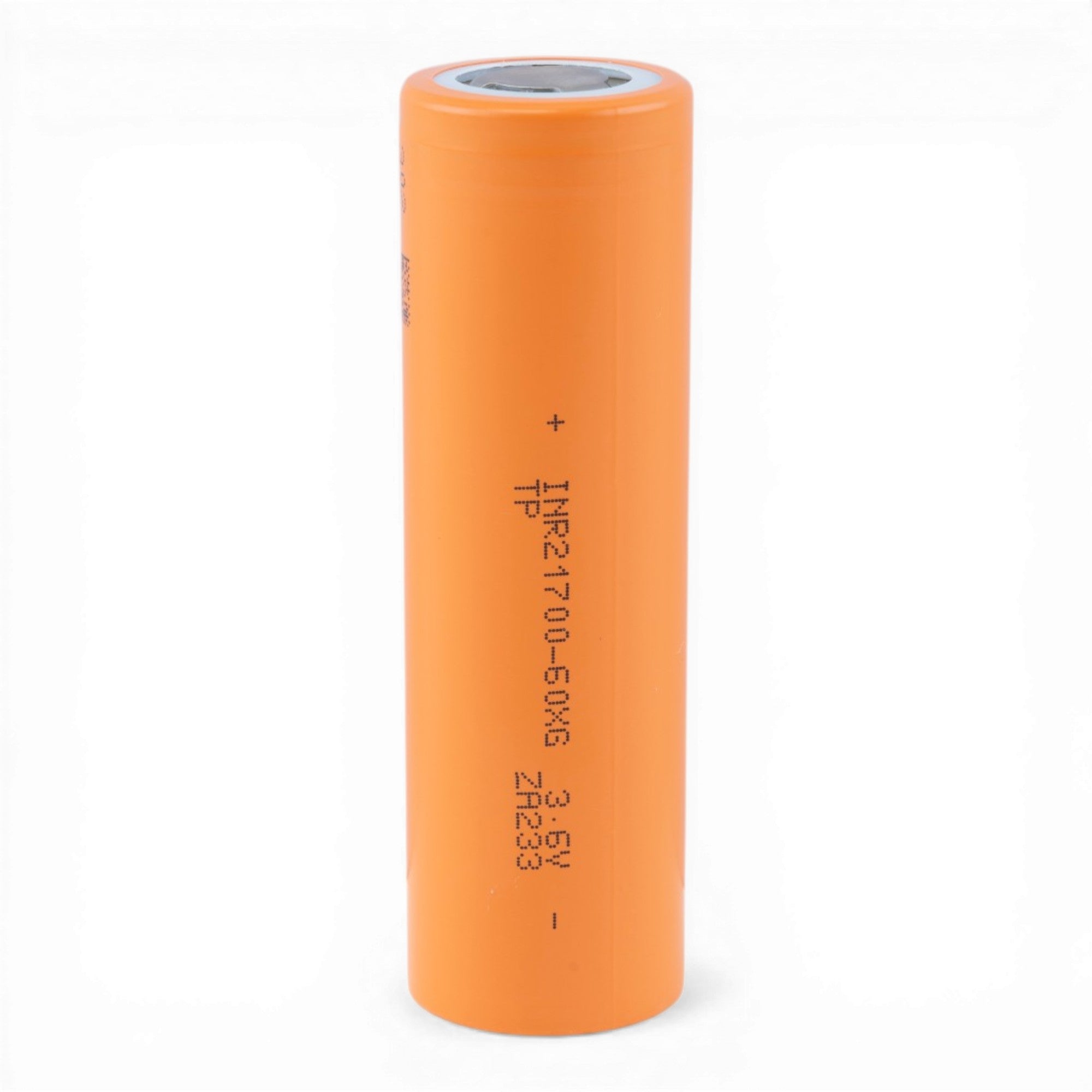

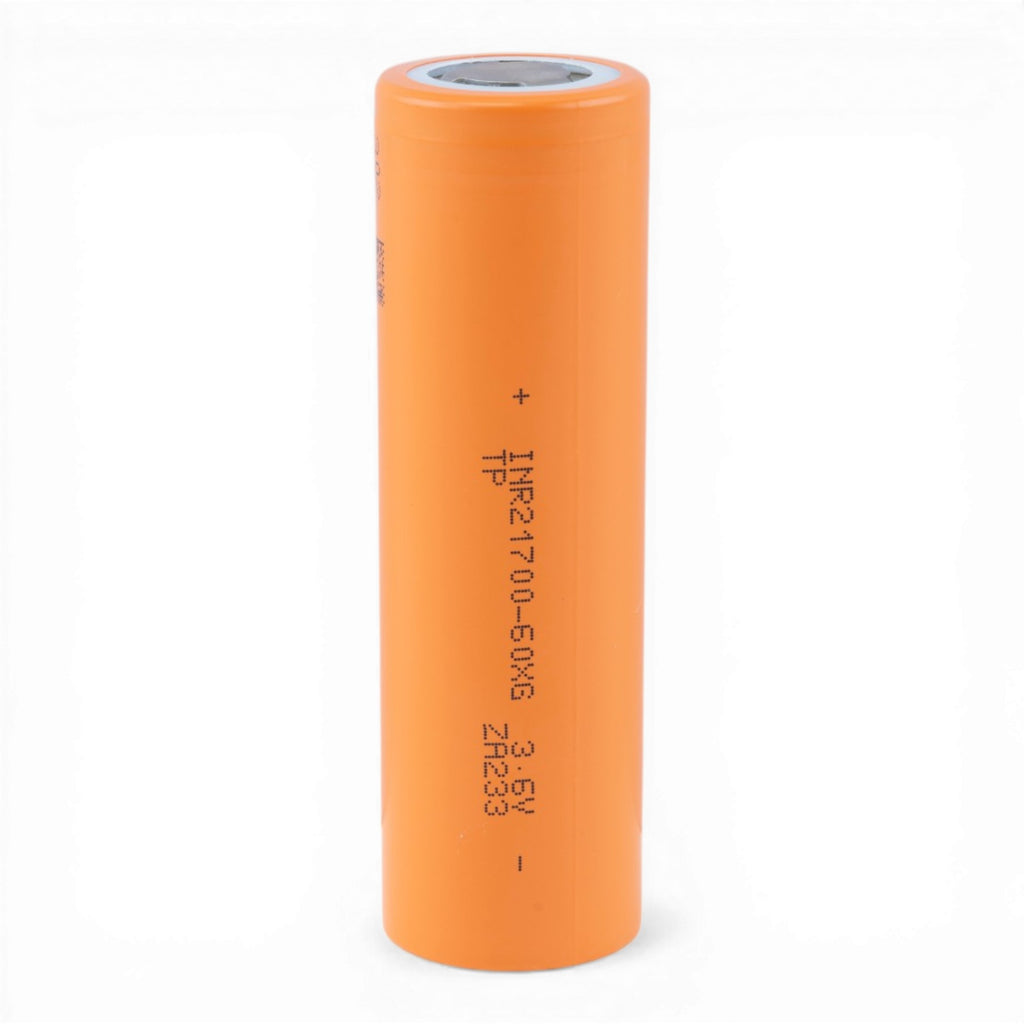

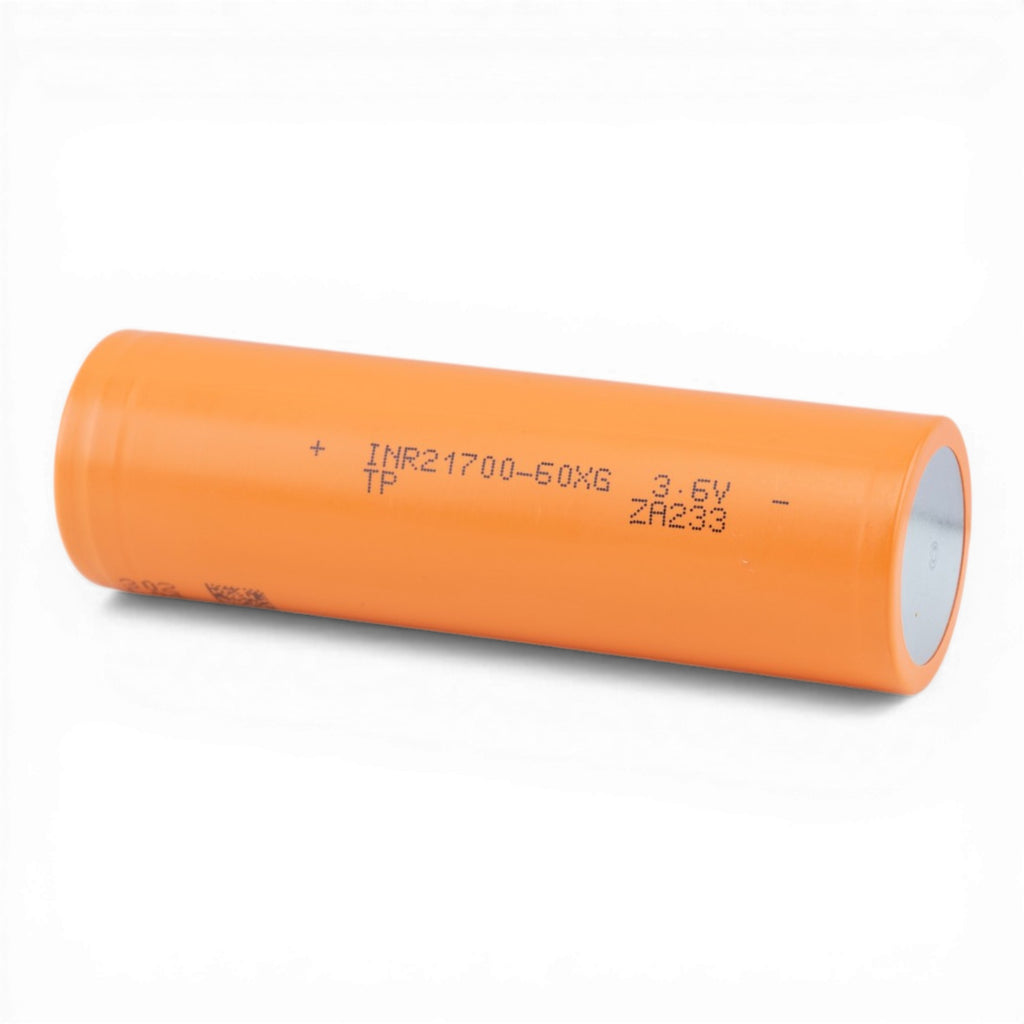

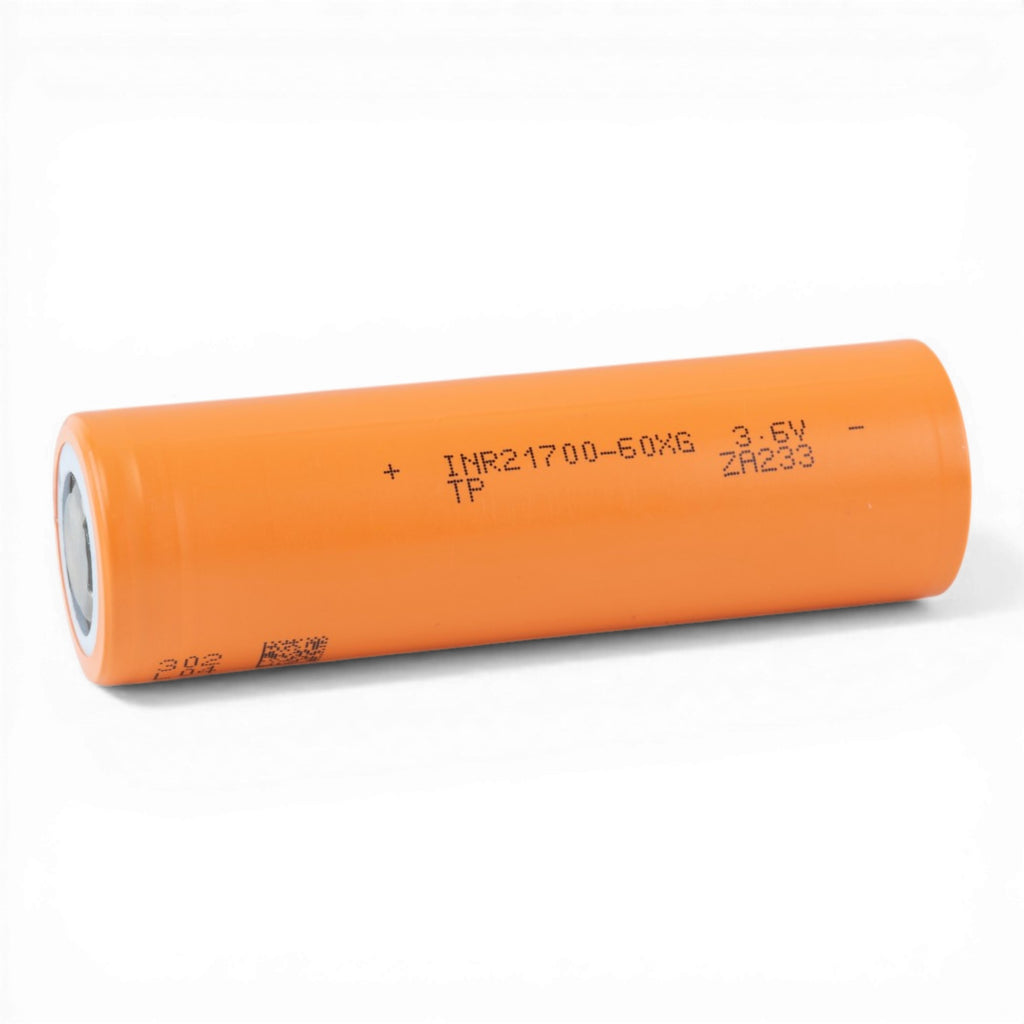

The TENPOWER INR21700-60XG is built for people who know what they want from a battery cell and refuse to accept the usual tradeoffs. With 6000mAh of typical capacity and roughly 300 Wh/kg of energy density, it already stands out as a high-energy 21700. Then you look at the discharge specs — 60A continuous, peaks above 160A — and realize this cell plays by different rules. An AC internal resistance below 3mΩ keeps voltage response firm and heat under control even when you're pulling hard. Whether you're assembling a high-performance e-bike pack, a demanding power tool battery, or a motorsport energy system, the 60XG gives you the capacity of an energy cell and the current capability of a power cell in a single unit. Use it in a properly engineered pack with a BMS and thermal management sized for what this cell can actually deliver.
Applications / Uses
- Electric vehicles, e-bikes, and high-performance mobility platforms
- Custom and professional battery pack builds
- High-drain power tools and heavy-duty cordless equipment
- Robotics, drones, and high-current automation systems
- Energy storage, backup power, and motorsport applications
Specifications
| Brand: | TENPOWER |
| Model: | INR21700-60XG |
| Battery Type: | 21700 Lithium-Ion (INR) |
| Typical Capacity: | 6000mAh (6.0Ah) |
| Nominal Voltage: | 3.6V |
| Energy per Cell: | 21.6Wh |
| Gravimetric Energy Density: | ~300 Wh/kg |
| Max Continuous Discharge: | 60A |
| Peak Discharge Current: | >160A |
| AC Internal Resistance: | <3mΩ |
| Cathode Material: | NCA (Nickel Cobalt Aluminum) |
| Anode Material: | Graphite / Silicon Carbide (Gr/SiC) |
| Battery Top: | Flat Top |
| Protected: | No |
| Diameter: | 21mm (Φ21) |
| Weight: | ~73g |
| Cell Volume: | 25.36 cm³ |
| Release Year: | 2026 |
⚠ Important Safety Warnings
Improper handling or misuse of this lithium-ion battery can result in FIRE, EXPLOSION, or THERMAL RUNAWAY, causing personal injury, property damage, or death. Users must read and follow all safety guidelines before purchase and use. Click here to review the full safety guidelines.
- Critical Warning: Never carry loose batteries in your pocket, purse, or bag. Loose batteries can come into contact with metal objects like keys or coins, causing a short circuit, which may result in severe burns, fire, or explosion. Always store or transport batteries in a protective case or box.
- Intended Use: This battery is designed for integration into protected battery packs with a Battery Management System (BMS) or Protection Circuit Board (PCB). It is not intended for standalone use or use in devices such as e-cigarettes or vaporizers.
-
What is Thermal Runaway?
- A dangerous chain reaction where heat generated by a failing battery causes it to overheat further, potentially leading to fire or explosion.
- Causes: Overcharging, short circuits, physical damage, or exposure to high temperatures.
- Prevention: Use a smart charger, avoid physical damage, and store batteries in a cool, dry place.
- Storage & Transport: Always store batteries in protective cases or boxes to prevent accidental contact with metal objects. Never store loose batteries in pockets, purses, bags, or near conductive materials.
- Inspection: Do not use if the PVC wrapper, terminal insulator, or casing is damaged, dented, leaking, or bulging. These are signs of internal damage or instability, and continued use could result in failure, fire, or explosion.
- Charging: Use a smart charger designed specifically for lithium-ion batteries and ensure that the charger's voltage matches the battery's specifications. Never overcharge, over-discharge, or leave unattended while charging.
- Prohibited Activities: Do not short circuit, modify, puncture, crush, expose to liquids, or solder directly onto the battery (spot weld only).
- Emergency Response: If the battery shows signs of thermal runaway (e.g., smoke, swelling, or heat), immediately stop use and move it to a non-flammable surface (e.g., concrete or sand). For fires, use a Class D fire extinguisher or sand—never use water.
