Description

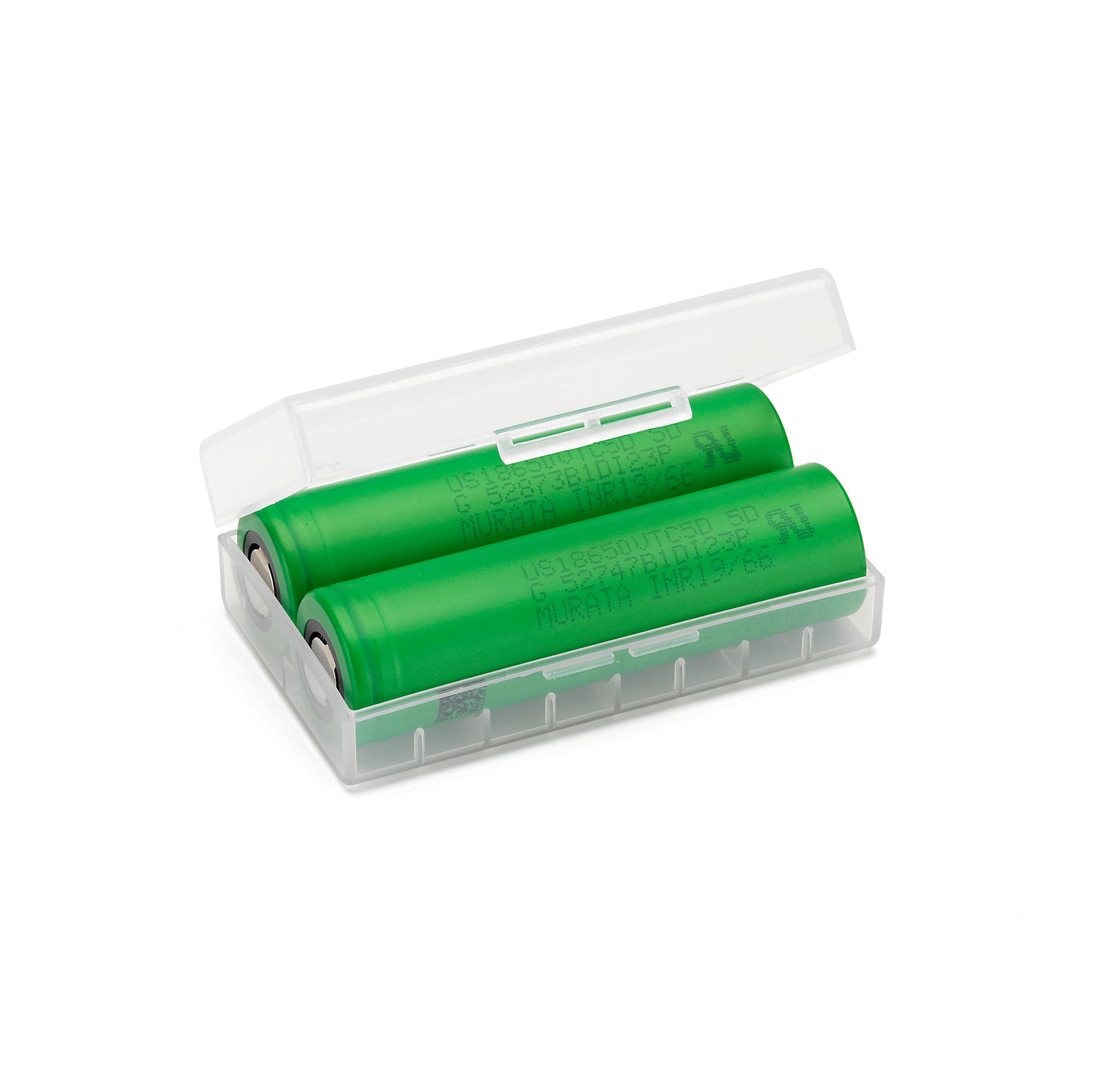

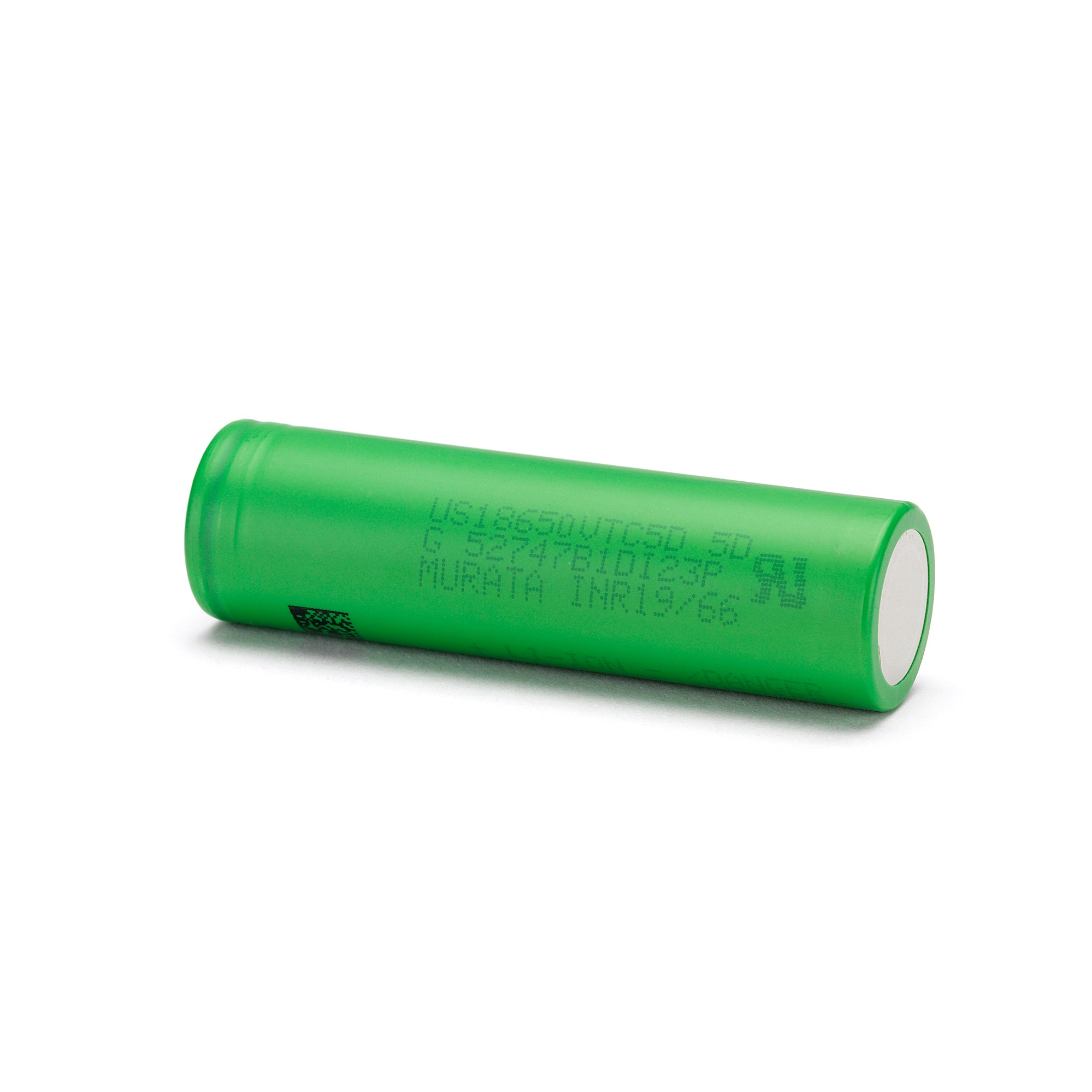

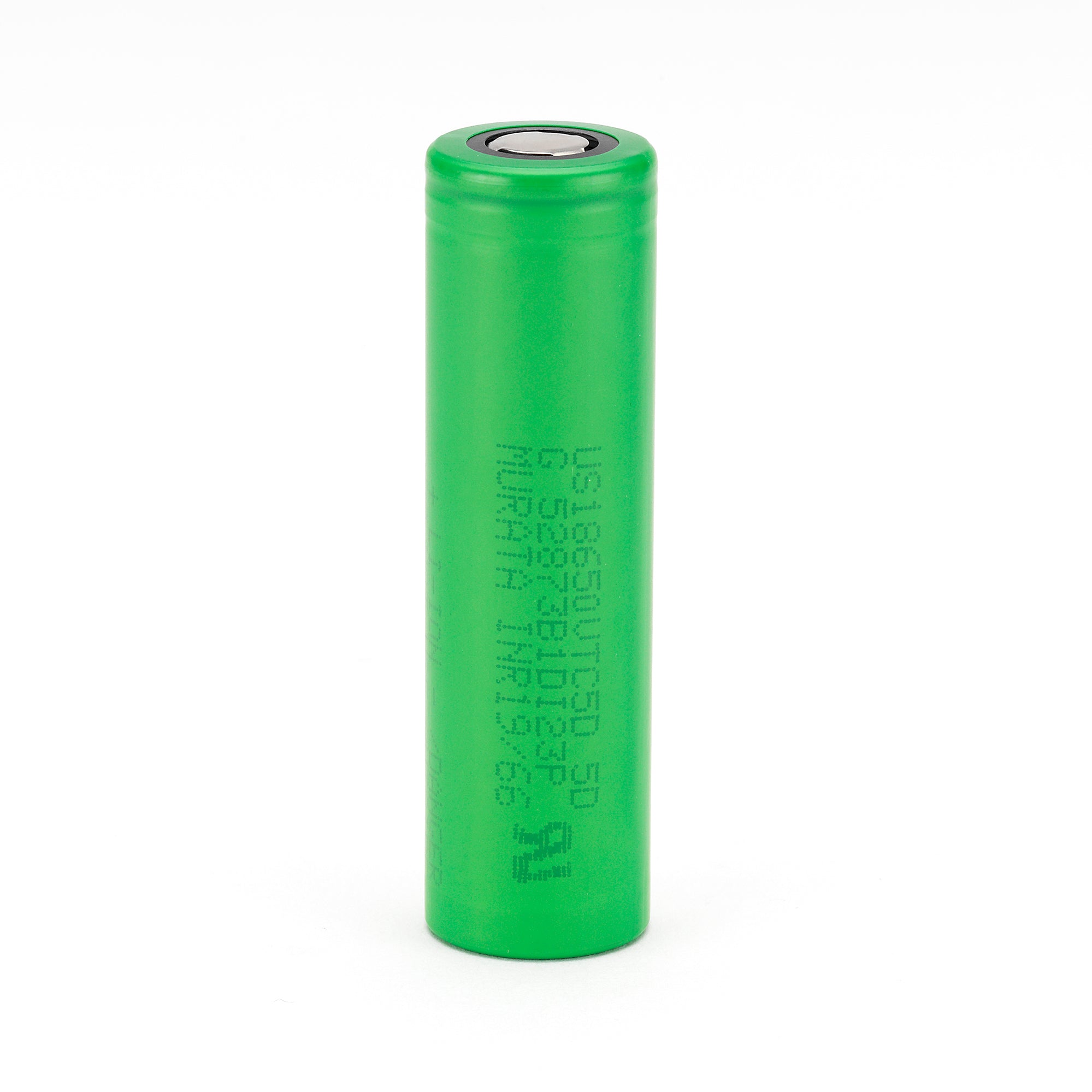

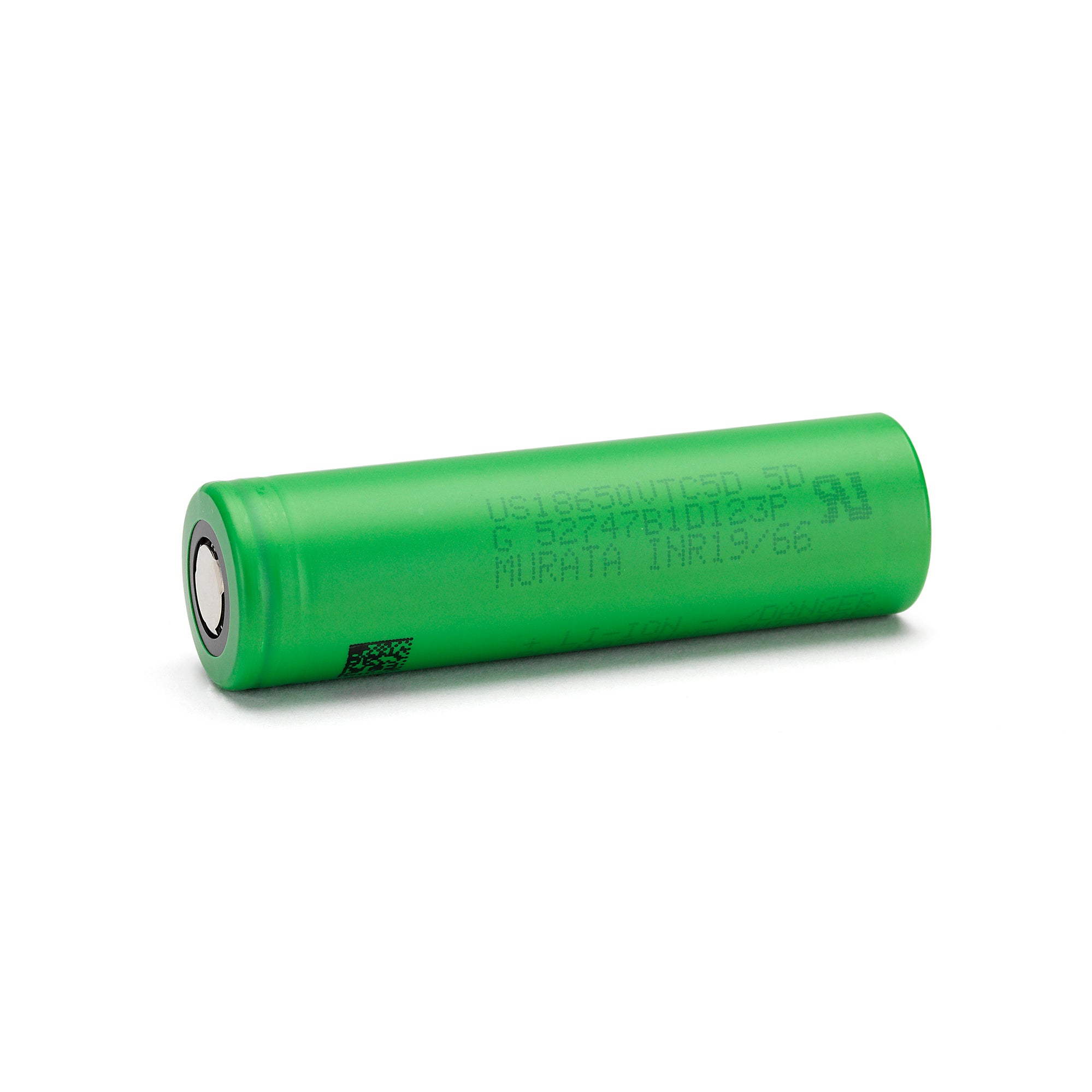

Sony | Murata VTC5D 18650 2800mAh 25A Battery
Unleash powerful performance with the Sony | Murata VTC5D 18650 2800mAh 25A Battery, designed to meet the energy demands of high-performance devices. With an impressive 2800mAh capacity and a maximum continuous discharge rate of 25A, peaking at 35A under controlled conditions, this lithium-ion rechargeable battery ensures reliable power delivery. Engineered with precision and safety at its core, the VTC5D is perfect for use in battery packs equipped with protective circuits, offering exceptional performance across a wide range of applications.
- High Capacity: 2800mAh ensures long-lasting power for extended device operation and efficiency.
- Powerful Discharge Rate: Provides 25A continuous discharge, with the ability to reach 35A under a 90°C cutoff, making it ideal for energy-intensive tasks.
- Strict Safety Standards: Complies with UL1642 and IEC62133 certifications, ensuring reliable and safe operation in demanding environments.
- Optimized Design: Flat-top configuration, designed for use in battery packs with additional PCB or BMS (not included), enhancing operational safety.
- Premium Quality: Manufactured in world-class facilities in Singapore and Japan, guaranteeing superior quality and durability.
The Sony | Murata VTC5D 18650 battery combines high capacity, robust discharge capabilities, and advanced safety features, making it a trusted choice for powering high-demand devices.
SPECIFICATIONS
| Manufacturer: | Murata |
| Model: | US18650VTC5D (VTC5D) |
| Size: | 18650 |
| Positive Terminal: | Flat Top |
| Nominal Capacity: | 2800mAh |
| Continuous Discharge Rating (max): | 25A Maximum Continuous, 35A Maximum Continuous with an 90deg C cutoff |
| Nominal Voltage: | 3.6V |
| Maximum Voltage: | 4.2V |
| Discharge cut-off Voltage: | 2.0V |
| Protected: | NO, UNPROTECTED. |
| Rechargeable: | Yes |
| Approx. Dimensions: | 17.9mm x 64.7mm |
| Approx. Weight: | 46.37g |
| Country of Origin: | Singapore or Japan |
| Data Specification Sheet: | Sony | Murata VTC5D Datasheet |
⚠ Important Safety Warnings
Improper handling or misuse of this lithium-ion battery can result in FIRE, EXPLOSION, or THERMAL RUNAWAY, causing personal injury, property damage, or death. Users must read and follow all safety guidelines before purchase and use. Click here to review the full safety guidelines.
- Critical Warning: Never carry loose batteries in your pocket, purse, or bag. Loose batteries can come into contact with metal objects like keys or coins, causing a short circuit, which may result in severe burns, fire, or explosion. Always store or transport batteries in a protective case or box.
- Intended Use: This battery is designed for integration into protected battery packs with a Battery Management System (BMS) or Protection Circuit Board (PCB). It is not intended for standalone use or use in devices such as e-cigarettes or vaporizers.
-
What is Thermal Runaway?
- A dangerous chain reaction where heat generated by a failing battery causes it to overheat further, potentially leading to fire or explosion.
- Causes: Overcharging, short circuits, physical damage, or exposure to high temperatures.
- Prevention: Use a smart charger, avoid physical damage, and store batteries in a cool, dry place.
- Storage & Transport: Always store batteries in protective cases or boxes to prevent accidental contact with metal objects. Never store loose batteries in pockets, purses, bags, or near conductive materials.
- Inspection: Do not use if the PVC wrapper, terminal insulator, or casing is damaged, dented, leaking, or bulging. These are signs of internal damage or instability, and continued use could result in failure, fire, or explosion.
- Charging: Use a smart charger designed specifically for lithium-ion batteries and ensure that the charger's voltage matches the battery's specifications. Never overcharge, over-discharge, or leave unattended while charging.
- Prohibited Activities: Do not short circuit, modify, puncture, crush, expose to liquids, or solder directly onto the battery (spot weld only).
- Emergency Response: If the battery shows signs of thermal runaway (e.g., smoke, swelling, or heat), immediately stop use and move it to a non-flammable surface (e.g., concrete or sand). For fires, use a Class D fire extinguisher or sand—never use water.
Disclaimer
IMR Batteries is not responsible for any damages, injuries, or claims arising from improper use, handling, or failure to follow these safety guidelines. Lithium-ion batteries require strict adherence to all safety protocols. It is the reseller's responsibility to ensure all safety warnings and product guidelines are effectively communicated to their customers. Users and resellers assume full responsibility for the safe handling, usage, and distribution of this product.
