Description

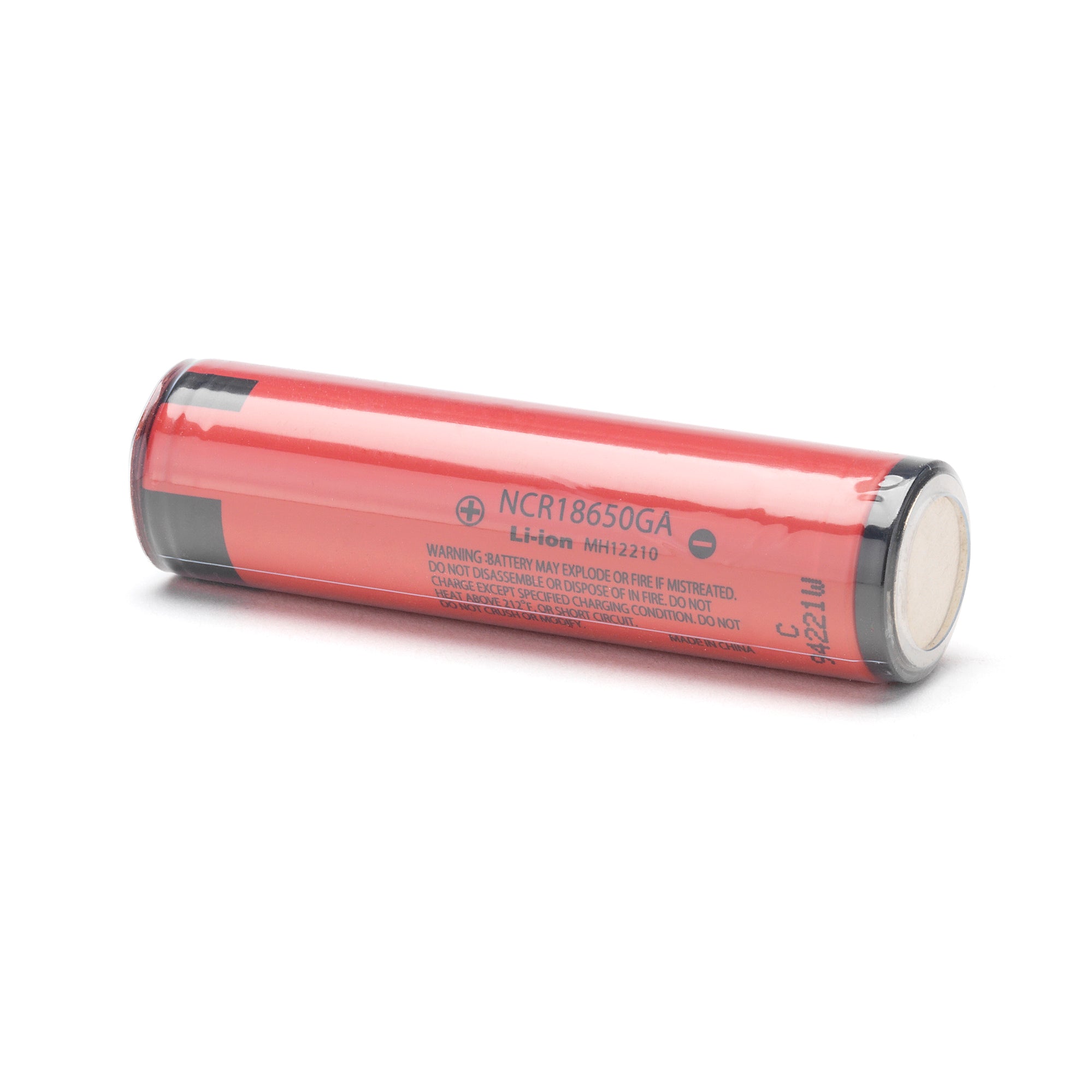

Panasonic NCR18650GA 3450mAh Battery – High-Capacity, Long-Lasting Power for Demanding Devices
Experience unparalleled power with the Panasonic NCR18650GA, a high-capacity 3450mAh lithium-ion battery that offers exceptional performance for demanding applications. Designed to deliver a continuous 10A discharge, this battery is perfect for high-performance devices such as portable power tools, e-bikes, and other energy-intensive electronics. Its high energy density and robust build ensure reliable performance and long-lasting power, making it a top choice for users seeking a durable and powerful energy solution.
Key Features:
- High Capacity: 3450mAh provides extended power delivery, ensuring longer run times and reducing the need for frequent recharges.
- Powerful Discharge: Capable of a continuous 10A discharge rate, perfect for high-drain applications that require robust energy output.
- Advanced Charging Technology: Utilizes a CC-CV (constant current, constant voltage) charging method to optimize battery performance and extend overall lifespan.
- Wide Operating Temperatures: Efficient operation in a broad range of temperatures from -20°C to +60°C, making it suitable for diverse environmental conditions.
- Exceptional Energy Density: Offers 693 Wh/l volumetric and 224 Wh/kg gravimetric energy densities, ensuring more power is packed into a compact form factor.
The Panasonic NCR18650GA 3450mAh Battery is the ultimate power solution for users who need reliable, long-lasting energy for high-performance electronics. Whether powering portable tools, e-bikes, or other energy-demanding devices, this battery delivers the efficiency, durability, and power you need for optimal performance.
SPECIFICATIONS
| Manufacturer: | Panasonic |
| Model: | NCR18650GA |
| Size: | 18650 |
| Positive Terminal: | Button Top |
| Nominal Capacity: | 3450mAh typical |
| Continuous Discharge Rating (max): | 5A Maximum Continuous (PCB Limit), 10A Maximum Continuous |
| Nominal Voltage: | 3.6V |
| Maximum Voltage: | 4.2V |
| Discharge cut-off Voltage: | 2.5V |
| Protected: | Yes, PCB |
| Rechargeable: | Yes |
| Approx. Dimensions: | 18.5mm x 69.5mm |
| Approx. Weight: | 49.4g |
| Country of Origin: | China or Japan, PCB (China) |
| Data Specification Sheet: | Panasonic NCR18650GA Datasheet |
⚠ Important Safety Warnings
While this battery is equipped with built-in protection circuitry to help prevent overcharging, over-discharging, and short circuits, improper handling or misuse can still result in FIRE, EXPLOSION, or THERMAL RUNAWAY, causing personal injury or property damage. Users must read and follow all safety guidelines before purchase and use. Click here to review the full safety guidelines.
- Intended Use: This battery is designed for use in flashlights, headlamps, and similar devices that require a button top configuration. Ensure compatibility with your device before use.
- Protection Circuit Limitations: While the protection circuit provides additional safety, it cannot prevent damage caused by misuse, including exposure to liquids, extreme heat, or physical damage.

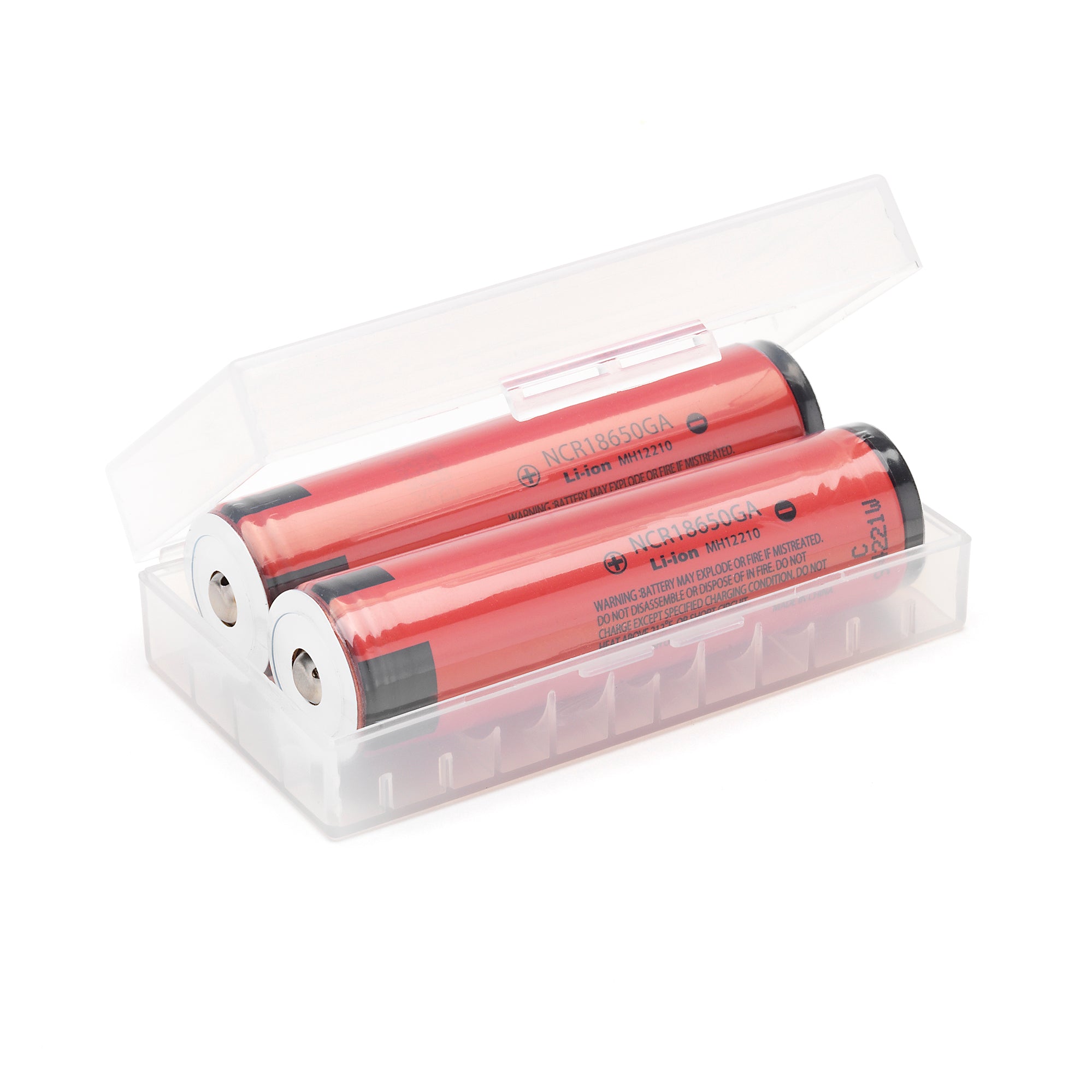

- Storage & Transport: Always store batteries in protective cases to prevent accidental contact with metal objects (e.g., keys, coins, tools) that can cause a short circuit. Do not store loose batteries in pockets, bags, or other uncontrolled environments.
- Inspection: Do not use if the battery is dented, leaking, bulging, or if the outer wrapper or button top is damaged.
- Charging: Use a smart charger specifically designed for button top protected batteries. Do not exceed the battery's voltage and current specifications. Never leave the battery unattended while charging.
-
Prohibited Activities:
- Do not expose the battery to water, fire, or high heat.
- Do not modify, puncture, crush, or attempt to disassemble the battery.
- Do not use the battery if it becomes unusually hot during use or charging.
- Emergency Response: If the battery overheats, emits smoke, or shows other signs of failure, stop using it immediately. Move the battery to a safe, non-flammable surface (e.g., sand or concrete) and follow emergency protocols.
Disclaimer
IMR Batteries is not responsible for any damages, injuries, or claims arising from improper use, handling, or failure to follow these safety guidelines. Lithium-ion batteries are inherently volatile and require strict adherence to all safety guidelines. It is the reseller's responsibility to ensure all safety warnings and product guidelines are effectively communicated to their customers. Users and resellers assume full responsibility for the safe handling, usage, and distribution of this product.
