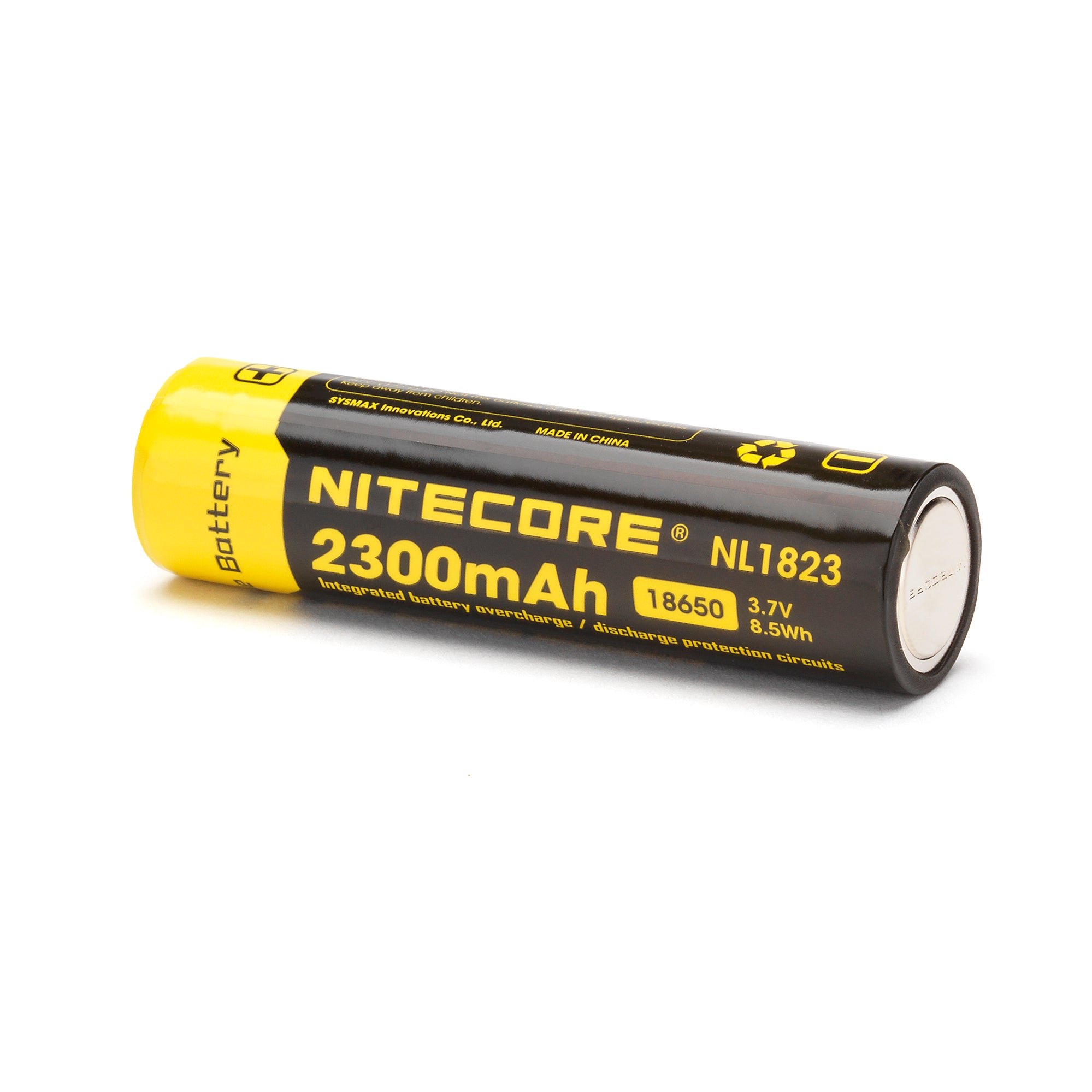

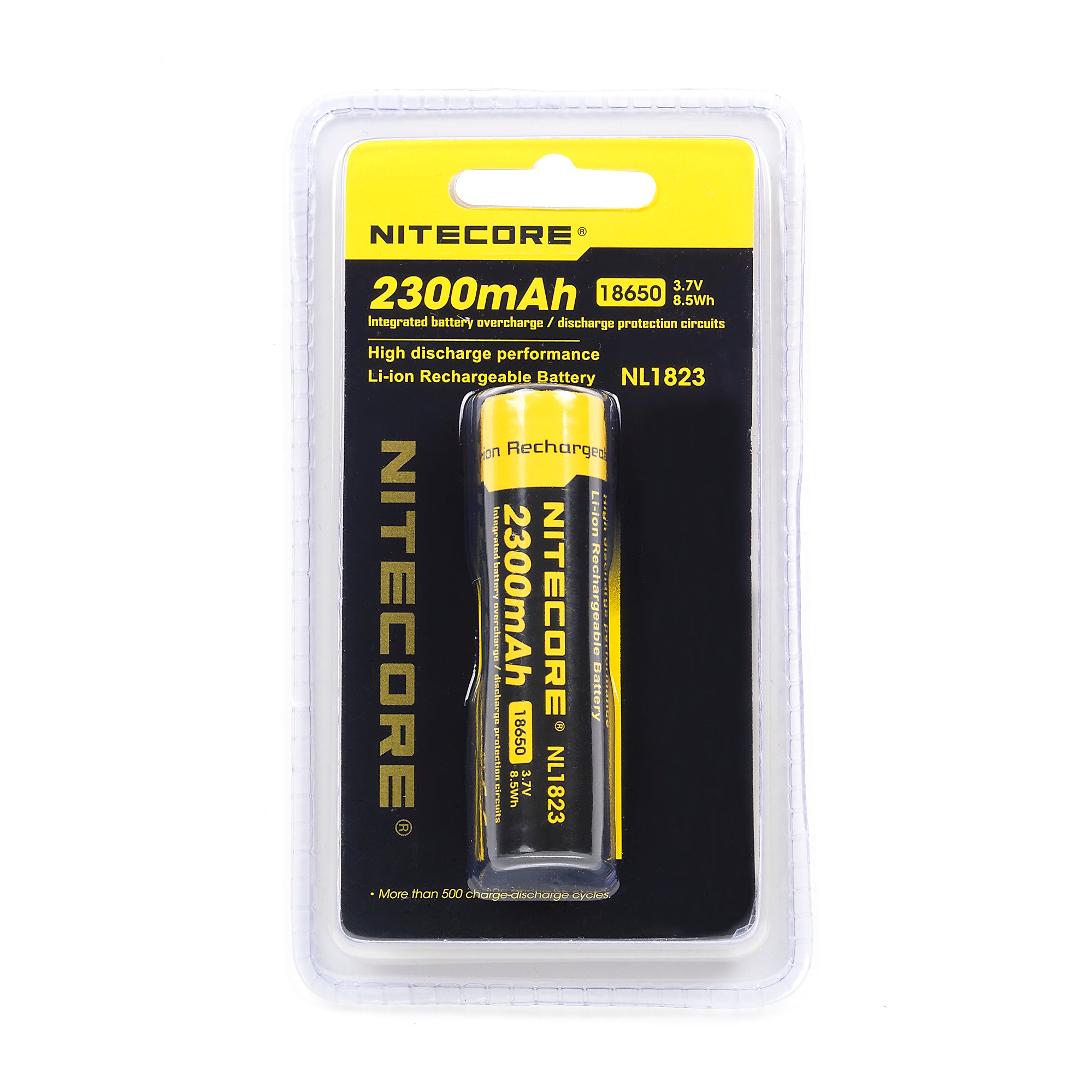

Nitecore NL1823 18650 2300mAh Battery - Protected Button Top
Nitecore NL1823 18650 2300mAh Battery - Protected Button Top
Nitecore NL1823 18650 2300mAh Battery - Protected Button Top
Nitecore NL1823 18650 2300mAh Battery - Protected Button Top
Roll over image to zoom in Click on image to zoom
Nitecore NL1823 18650 2300mAh Battery - Protected Button TopNitecore NL1823 18650 2300mAh Battery - Protected Button TopNitecore NL1823 18650 2300mAh Battery - Protected Button TopNitecore NL1823 18650 2300mAh Battery - Protected Button Top

Nitecore NL1823 18650 2300mAh Battery - Protected Button Top

✔ Grade A Cells
✔ Guaranteed Authentic
✔ Integrated Safety & Over-Current Protection
✔ Trusted Since 2014 • 3,000+ Google Reviews 4.9⭐
✔ Fast Shipping from Houston, TX

Price:
$8.95

Pickup currently unavailable at Houston Warehouse

Key Features

  • 2300mAh capacity for dependable everyday use
  • Built-in protection circuit for safer charging and discharging
  • 6A regulated output for stable performance
  • Button top design for wide device compatibility
  • Long service life with 500+ recharge cycles

Note: This is a button top protected 18650 battery which is longer than a standard flat top unprotected 18650 battery.

Overview

The Nitecore NL1823 protected 18650 battery is designed for users who want reliability, safety, and long-term performance. Its integrated protection circuit helps prevent overcharging and deep discharge, while the 2300mAh capacity delivers consistent power for everyday and professional applications.

Applications / Uses

  • Rechargeable flashlights
  • Portable lighting solutions
  • Emergency preparedness equipment
  • Electronics requiring protected 18650 batteries
  • Backup power systems

SPECIFICATIONS

Manufacturer Nitecore
Model NL1823 (NL183)
Size 18650
Positive Terminal Button Top
Nominal Capacity 2300mAh
Continuous Discharge Rating 6A Max Continuous (PCB Limited)
Nominal Voltage 3.7V
Maximum Voltage 4.2V
Protected Yes, PCB
Rechargeable Yes
Approx. Dimensions 18.4mm × 69.6mm
Approx. Weight 47.56g
Nitecore NL1823 (NL183) 2300mAh Rechargeable 18650 Battery Nitecore NL1823 (NL183) 2300mAh Rechargeable 18650 Battery Nitecore NL1823 (NL183) 2300mAh Rechargeable 18650 Battery Nitecore NL1823 (NL183) 2300mAh Rechargeable 18650 Battery Nitecore NL1823 (NL183) 2300mAh Rechargeable 18650 Battery Nitecore NL1823 (NL183) 2300mAh Rechargeable 18650 Battery Nitecore NL1823 (NL183) 2300mAh Rechargeable 18650 Battery Nitecore NL1823 (NL183) 2300mAh Rechargeable 18650 Battery

⚠ Important Safety Warnings

While this battery is equipped with built-in protection circuitry to help prevent overcharging, over-discharging, and short circuits, improper handling or misuse can still result in FIRE, EXPLOSION, or THERMAL RUNAWAY, causing personal injury or property damage. Users must read and follow all safety guidelines before purchase and use. Click here to review the full safety guidelines.

  • Intended Use: This battery is designed for use in flashlights, headlamps, and similar devices that require a button top configuration. Ensure compatibility with your device before purchase or use.
  • Protection Circuit Limitations: While the protection circuit provides additional safety, it cannot prevent damage caused by misuse, including exposure to liquids, extreme heat, or physical damage.
  • Storage & Transport: Always store batteries in protective cases to prevent accidental contact with metal objects (e.g., keys, coins, tools) that can cause a short circuit. Do not store loose batteries in pockets, bags, or other uncontrolled environments.
  • Inspection: Do not use if the battery is dented, leaking, bulging, or if the outer wrapper or button top is damaged.
  • Charging: Use a smart charger specifically designed for button top protected batteries. Do not exceed the battery's voltage and current specifications. Never leave the battery unattended while charging.
  • Prohibited Activities:
    • Do not expose the battery to water, fire, or high heat.
    • Do not modify, puncture, crush, or attempt to disassemble the battery.
    • Do not use the battery if it becomes unusually hot during use or charging.
  • Emergency Response: If a cell shows signs of thermal runaway (e.g., smoke, swelling, hissing, or heat), stop use immediately and, if it can be done safely, move it to a non-flammable surface (e.g., concrete or sand) away from combustible materials. Lithium-ion cells burn as Class B fires — use an ABC / dry-chemical fire extinguisher, or douse with large amounts of water to cool the cell and prevent the fire from spreading. Do not rely on a small spray; thorough cooling is required, and cells can reignite from residual heat, so monitor the area afterward. (Class D extinguishers are intended for lithium-metal batteries, not lithium-ion.) For any fire beyond a single small cell, evacuate and call emergency services.

Disclaimer

IMR Batteries is not responsible for any damages, injuries, or claims arising from improper use, handling, or failure to follow these safety guidelines. Lithium-ion batteries require strict adherence to all safety protocols.

It is the reseller's responsibility to ensure all product warnings and safety guidelines are effectively communicated to their customers. Some cells are sold in bulk packaging and are not individually packaged. Resellers must provide appropriate packaging for each individual cell sold and must not distribute cells loose, unprotected, or without a proper storage box or case.

Product compatibility is the sole responsibility of the customer. IMR Batteries does not guarantee compatibility with any specific device or application. We are not responsible for the design, assembly, performance, or safety of any battery pack constructed using our cells. It is the customer’s responsibility to ensure proper cell matching, protection circuitry, configuration, and safe construction practices.

Users and resellers assume full responsibility for the safe handling, usage, and distribution of this product.

Customer Reviews

Overall rating: 4.7 / 5 from 15 reviews.

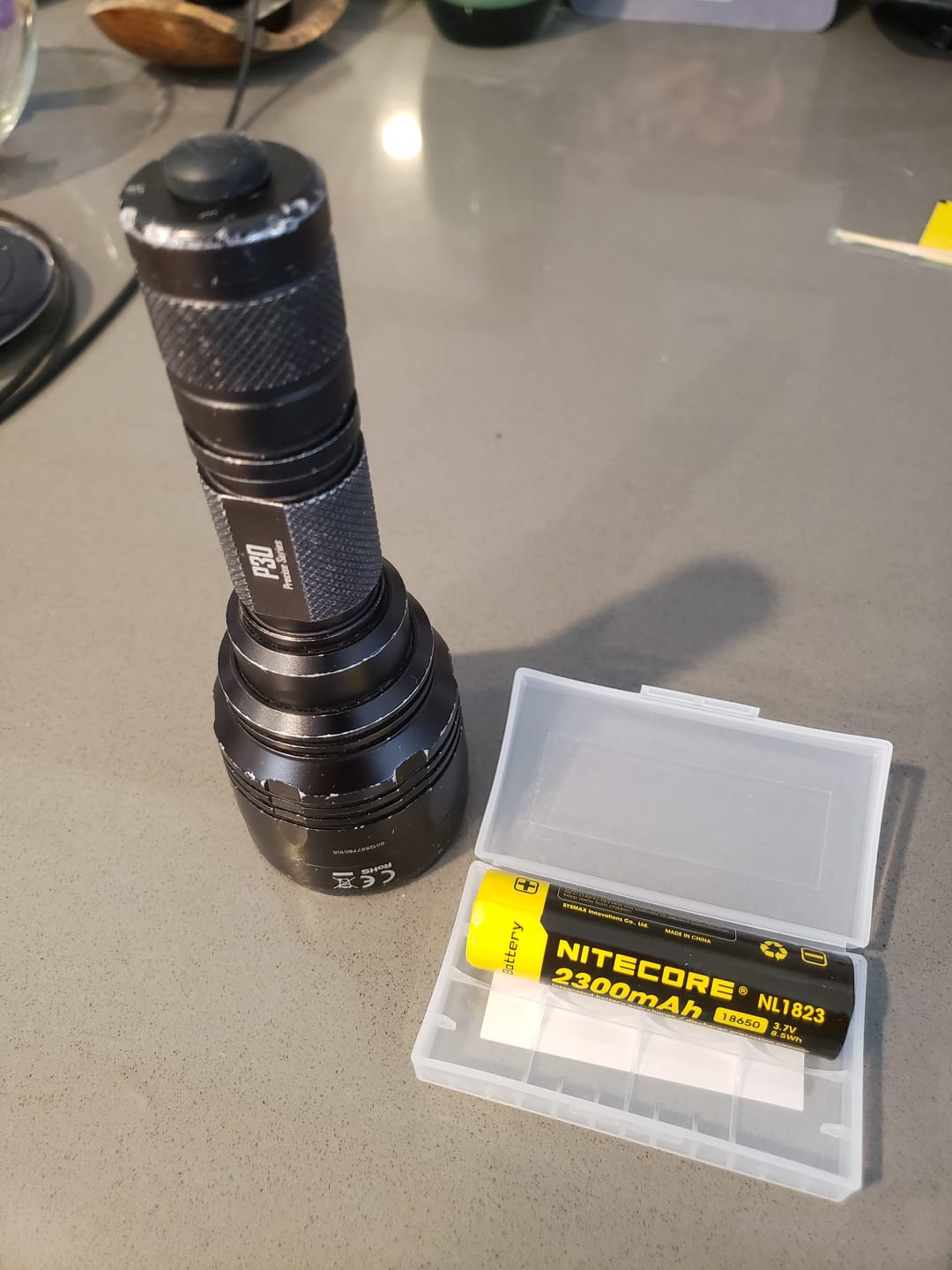

Customer photo review of Nitecore NL1823 18650 2300mAh Battery - Protected Button Top

Ordered 2 batteries for my Nikecore flashlight. They work perfectly. The shipping was fast and the batteries are the exact batteries that came with the light originally. Definitely would do business with y'all again.

Tim M. 5/5 Verified

Nitecore NL1823 18650 2300mAh Battery - Protected Button Top

Customer photo review of Nitecore NL1823 18650 2300mAh Battery - Protected Button Top

The Nitecore is bit larger than other 18650's (read dimensions). A perfect fit in my old I-Taste 134. Now brought back to new life. So that's good. But to large for other older tube mods. Coil resistance should not be less than 1.3 ohms for this battery.

Robert G. 5/5 Verified

Nitecore NL1823 18650 2300mAh Battery - Protected Button Top

Customer photo review of Nitecore NL1823 18650 2300mAh Battery - Protected Button Top

I placed my order with ease and receive it in a timely manner. IMR is the only place that had my paticular battery in stock and had it at a good price as well. IMR will be my go to place for rechargeable batteries.

James C. 5/5 Verified

Nitecore NL1823 18650 2300mAh Battery - Protected Button Top
