Key Features
- Upgraded Energy Capacity: 950mAh capacity delivers up to 46% more runtime compared to previous 16340 models.
- Integrated USB-C Charging: Built-in USB-C port with charging indicator enables direct, convenient recharging.
- Protected Button Top Design: Integrated PCB and pressure relief valve enhance operational safety.
- Durable Metal Construction: Nickel-plated stainless steel shell improves impact resistance and corrosion protection.
- Long Cycle Life: Engineered for over 500 charge and discharge cycles.
Overview

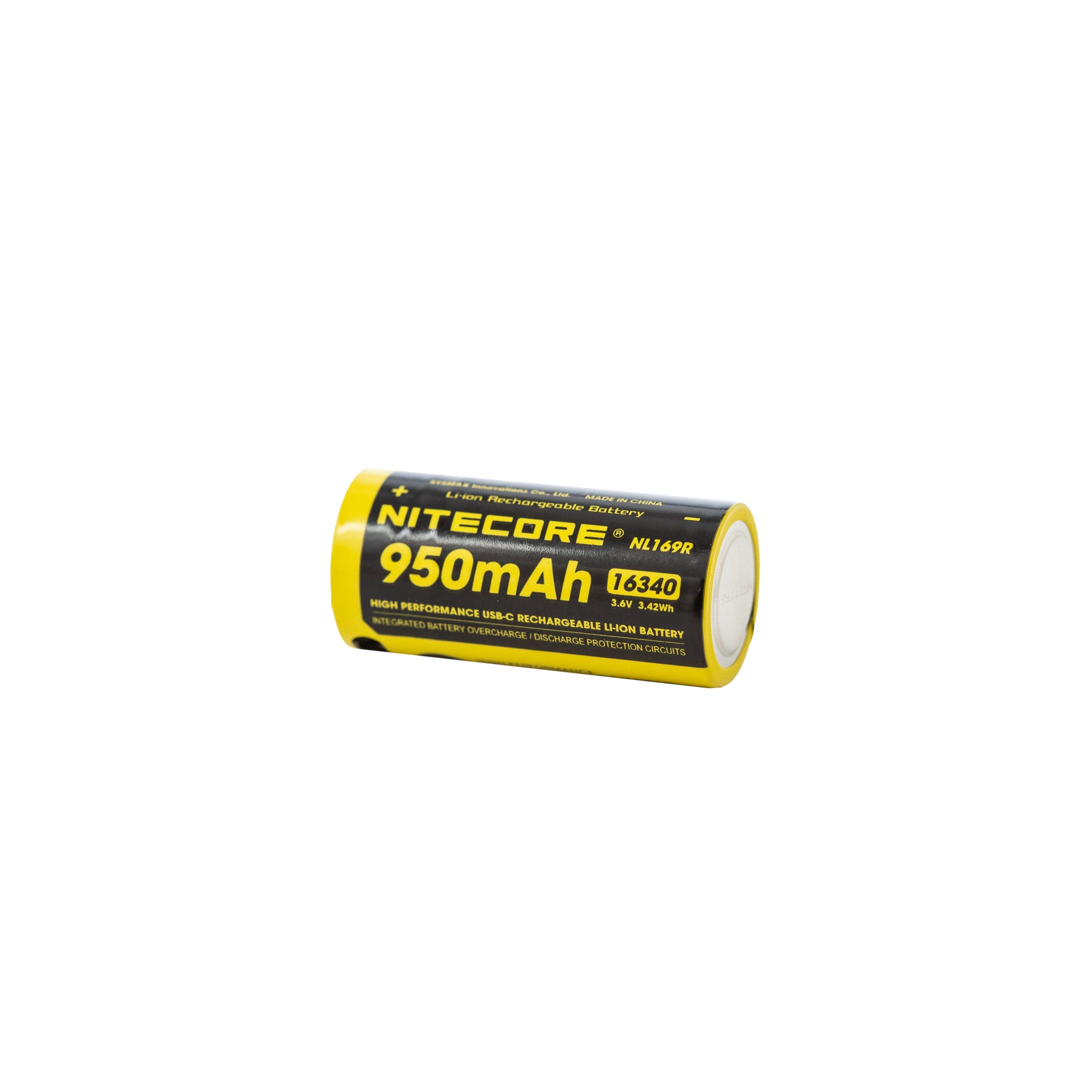

The Nitecore NL169R is a next-generation protected 16340 (RCR123) lithium-ion battery engineered for compact devices that require reliable power and modern charging convenience. Featuring a 950mAh capacity and integrated USB-C charging interface, this battery provides extended runtime while eliminating the need for an external charger. Advanced protection circuitry and premium construction ensure safe, dependable performance across demanding applications.
Applications / Uses
- High-performance flashlights
- Portable electronic devices
- Everyday carry (EDC) equipment
- USB-C rechargeable power systems
- Rechargeable RCR123 / 16340 applications
SPECIFICATIONS
| Manufacturer: | Nitecore |
| Model: | NL169R |
| Size: | RCR123 / 16340 |
| Positive Terminal: | Button Top |
| Nominal Capacity: | 950mAh |
| Continuous Discharge Rating (max): | 2A |
| Input (USB-C): | 5V / 1A |
| Protected: | Yes (PCB) |
| Rechargeable: | Yes |
| Approx. Dimensions: | 16.5mm x 36.2mm |
| Approx. Weight: | 20g |
Nitecore NL169R 16340 950mAh Data Specification Sheet
⚠ Important Safety Warnings
While this battery is equipped with built-in protection circuitry to help prevent overcharging, over-discharging, and short circuits, improper handling or misuse can still result in FIRE, EXPLOSION, or THERMAL RUNAWAY, causing personal injury or property damage. Users must read and follow all safety guidelines before purchase and use. Click here to review the full safety guidelines.
- Intended Use: This battery is designed for use in flashlights, headlamps, and similar devices that require a button top configuration. Ensure compatibility with your device before purchase or use.
- Protection Circuit Limitations: While the protection circuit provides additional safety, it cannot prevent damage caused by misuse, including exposure to liquids, extreme heat, or physical damage.
- Storage & Transport: Always store batteries in protective cases to prevent accidental contact with metal objects (e.g., keys, coins, tools) that can cause a short circuit. Do not store loose batteries in pockets, bags, or other uncontrolled environments.
- Inspection: Do not use if the battery is dented, leaking, bulging, or if the outer wrapper or button top is damaged.
- Charging: Use a smart charger specifically designed for button top protected batteries. Do not exceed the battery's voltage and current specifications. Never leave the battery unattended while charging.
-
Prohibited Activities:
- Do not expose the battery to water, fire, or high heat.
- Do not modify, puncture, crush, or attempt to disassemble the battery.
- Do not use the battery if it becomes unusually hot during use or charging.
- Emergency Response: If the battery overheats, emits smoke, or shows other signs of failure, stop using it immediately. Move the battery to a safe, non-flammable surface (e.g., sand or concrete) and follow emergency protocols.
Disclaimer
IMR Batteries is not responsible for any damages, injuries, or claims arising from improper use, handling, or failure to follow these safety guidelines. Lithium-ion batteries require strict adherence to all safety protocols.
It is the reseller's responsibility to ensure all product warnings and safety guidelines are effectively communicated to their customers. Some cells are sold in bulk packaging and are not individually packaged. Resellers must provide appropriate packaging for each individual cell sold and must not distribute cells loose, unprotected, or without a proper storage box or case.
Product compatibility is the sole responsibility of the customer. IMR Batteries does not guarantee compatibility with any specific device or application. We are not responsible for the design, assembly, performance, or safety of any battery pack constructed using our cells. It is the customer’s responsibility to ensure proper cell matching, protection circuitry, configuration, and safe construction practices.
Users and resellers assume full responsibility for the safe handling, usage, and distribution of this product.
