Description

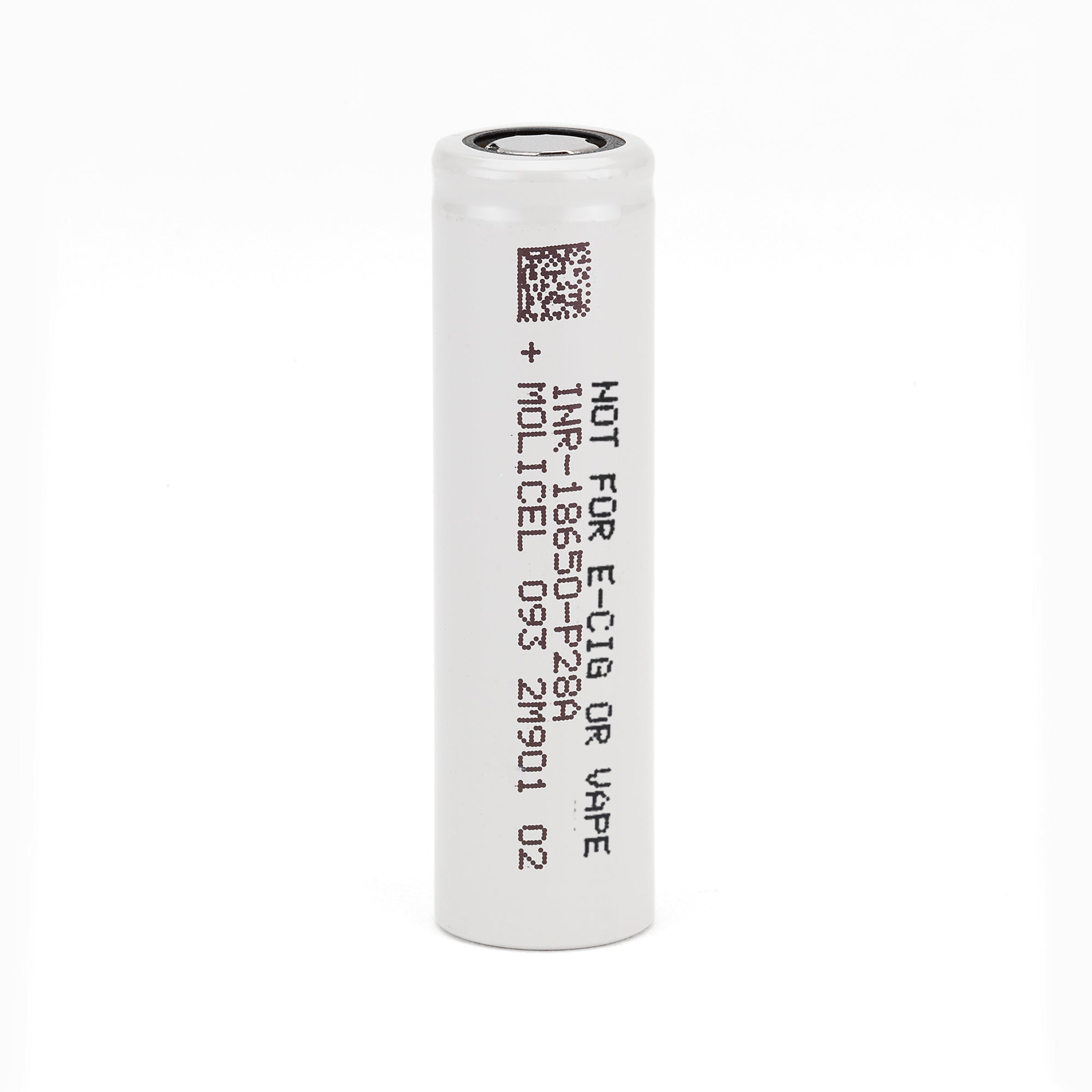

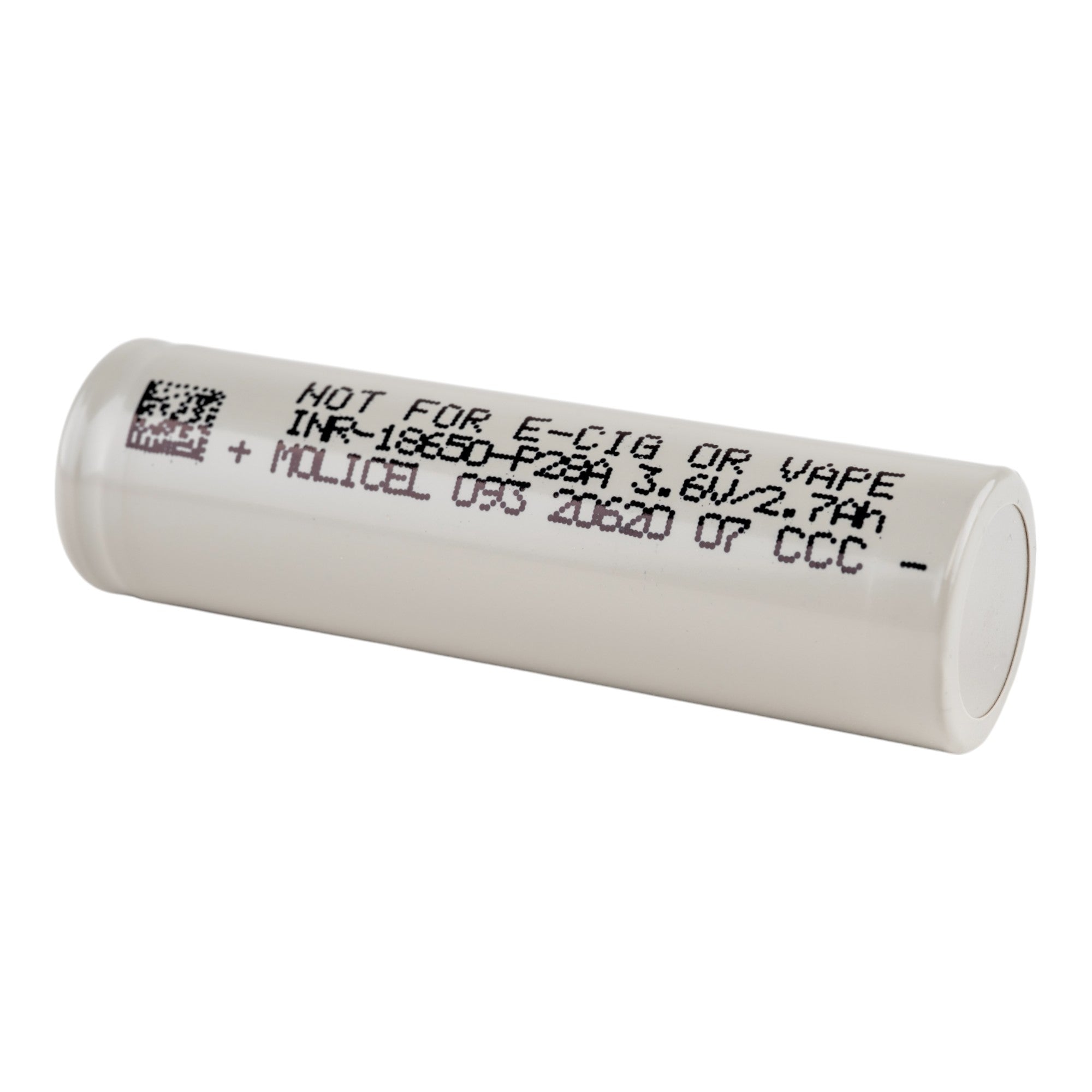

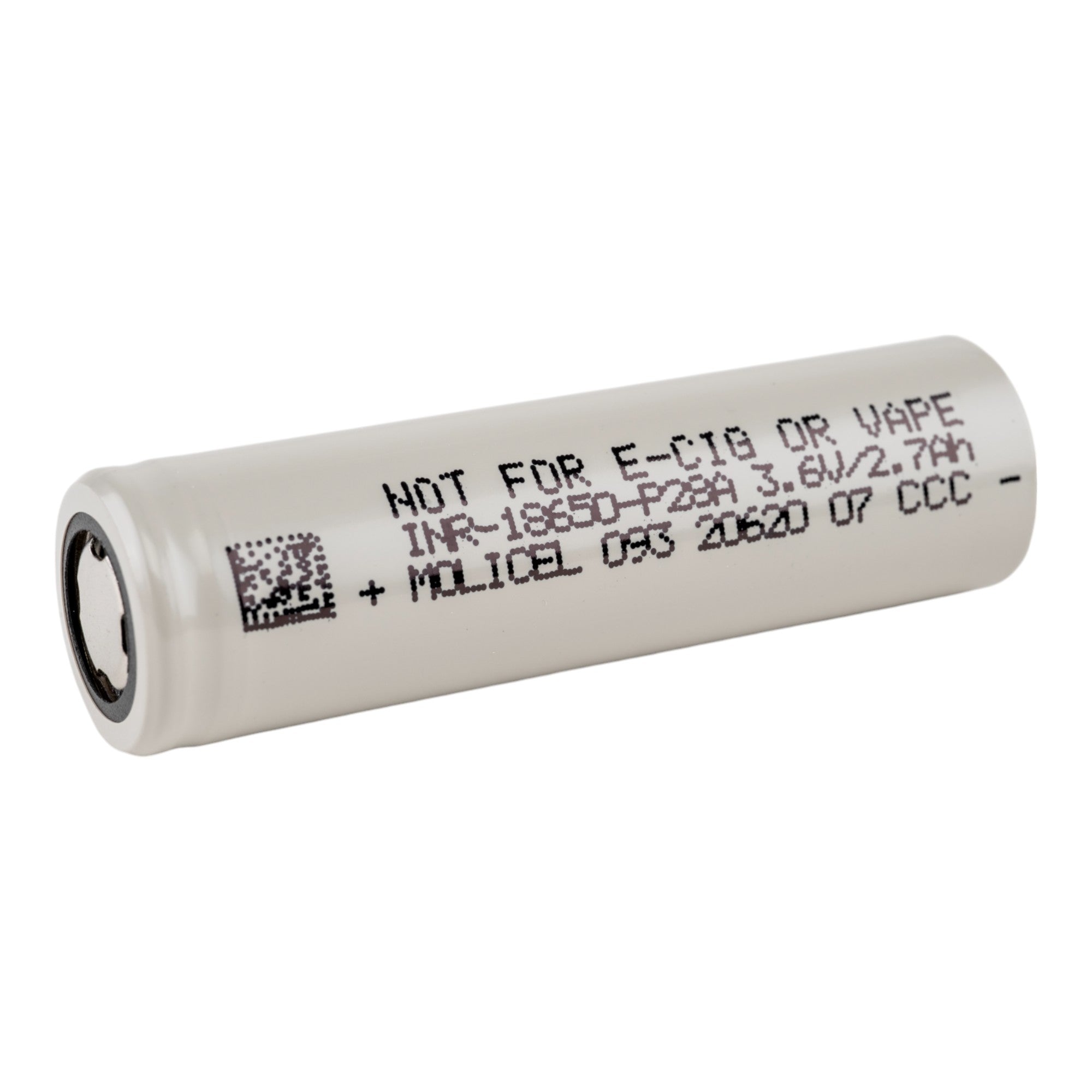

Molicel INR-18650-P28A (P28A) – High-Performance Power Solution
The Molicel P28A 18650 battery is a powerful and high-performance cell designed to meet the demands of even the most energy-intensive applications. With a high capacity of 2,800 mAh and a maximum continuous discharge rating of 35 amps, this battery delivers an impressive amount of power for its size. The P28A also boasts a long cycle life, ensuring reliable and consistent performance over time.
This versatile cell is ideal for use in power tools, high-performance flashlights, and electric vehicles, among other applications. Whether you need a reliable battery for work or play, the Molicel P28A is a top choice for power and performance.
Key Features:
- Capacity: 2,800 mAh
- Discharge Rate: 35A Maximum Continuous
- Voltage Range: 3.6V Nominal, 4.2V Maximum, 2.5V Cutoff
- Size: 18650 (18.50mm x 65.15mm)
- Weight: Approx. 46.65g
- Design: Flat top, unprotected (requires additional PCB or BMS protection)
- Origin: Manufactured in Canada or Taiwan
Note: This cell is unprotected and intended for use in protected battery packs only. It should not be used individually or as a standalone product without a protection circuit.
For detailed specifications, refer to the Molicel INR18650P28A Datasheet.
SPECIFICATIONS
| Manufacturer: | Molicel |
| Size | 18650 |
| Model: | INR-18650-P28A (P28A) |
| Positive Terminal: | Flat Top |
| Nominal Capacity: | 2800mAh |
| Continuous Discharge Rating (max): | 35A |
| Nominal Voltage: | 3.6V |
| Maximum Voltage: | 4.2V |
| Discharge cut-off Voltage: | 2.5V |
| Protected: | NO, UNPROTECTED. |
| Rechargeable: | Yes |
| Approx. Dimensions: | 18.50mm x 65.15mm |
| Approx. Weight: | 45.18g |
| Country of Origin: | Taiwan |
| Data Specification Sheet: | Molicel P28A Datasheet |
⚠ Important Safety Warnings
Improper handling or misuse of this lithium-ion battery can result in FIRE, EXPLOSION, or THERMAL RUNAWAY, causing personal injury, property damage, or death. Users must read and follow all safety guidelines before purchase and use. Click here to review the full safety guidelines.
- Critical Warning: Never carry loose batteries in your pocket, purse, or bag. Loose batteries can come into contact with metal objects like keys or coins, causing a short circuit, which may result in severe burns, fire, or explosion. Always store or transport batteries in a protective case or box.
- Intended Use: This battery is designed for integration into protected battery packs with a Battery Management System (BMS) or Protection Circuit Board (PCB). It is not intended for standalone use or use in devices such as e-cigarettes or vaporizers.
-
What is Thermal Runaway?
- A dangerous chain reaction where heat generated by a failing battery causes it to overheat further, potentially leading to fire or explosion.
- Causes: Overcharging, short circuits, physical damage, or exposure to high temperatures.
- Prevention: Use a smart charger, avoid physical damage, and store batteries in a cool, dry place.

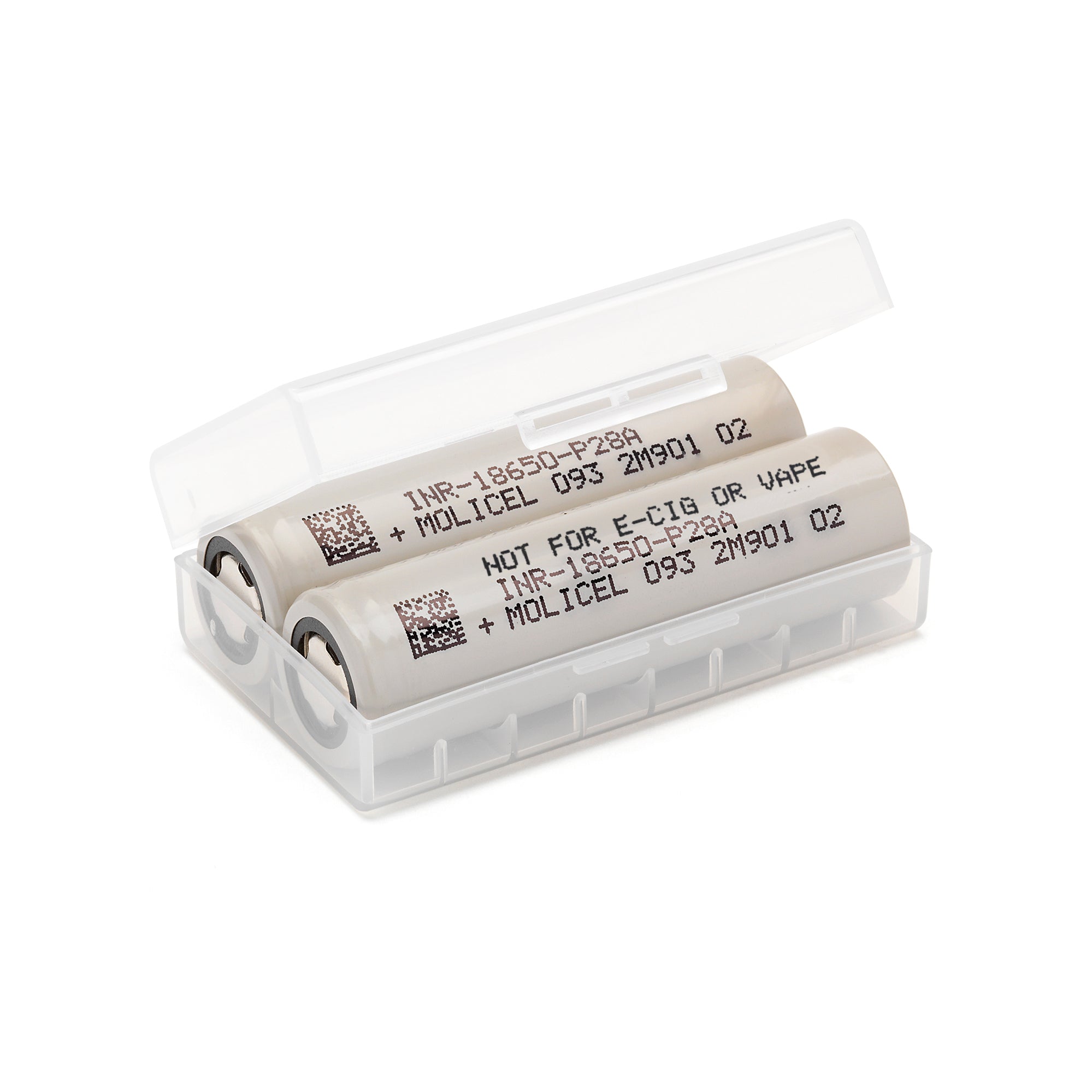

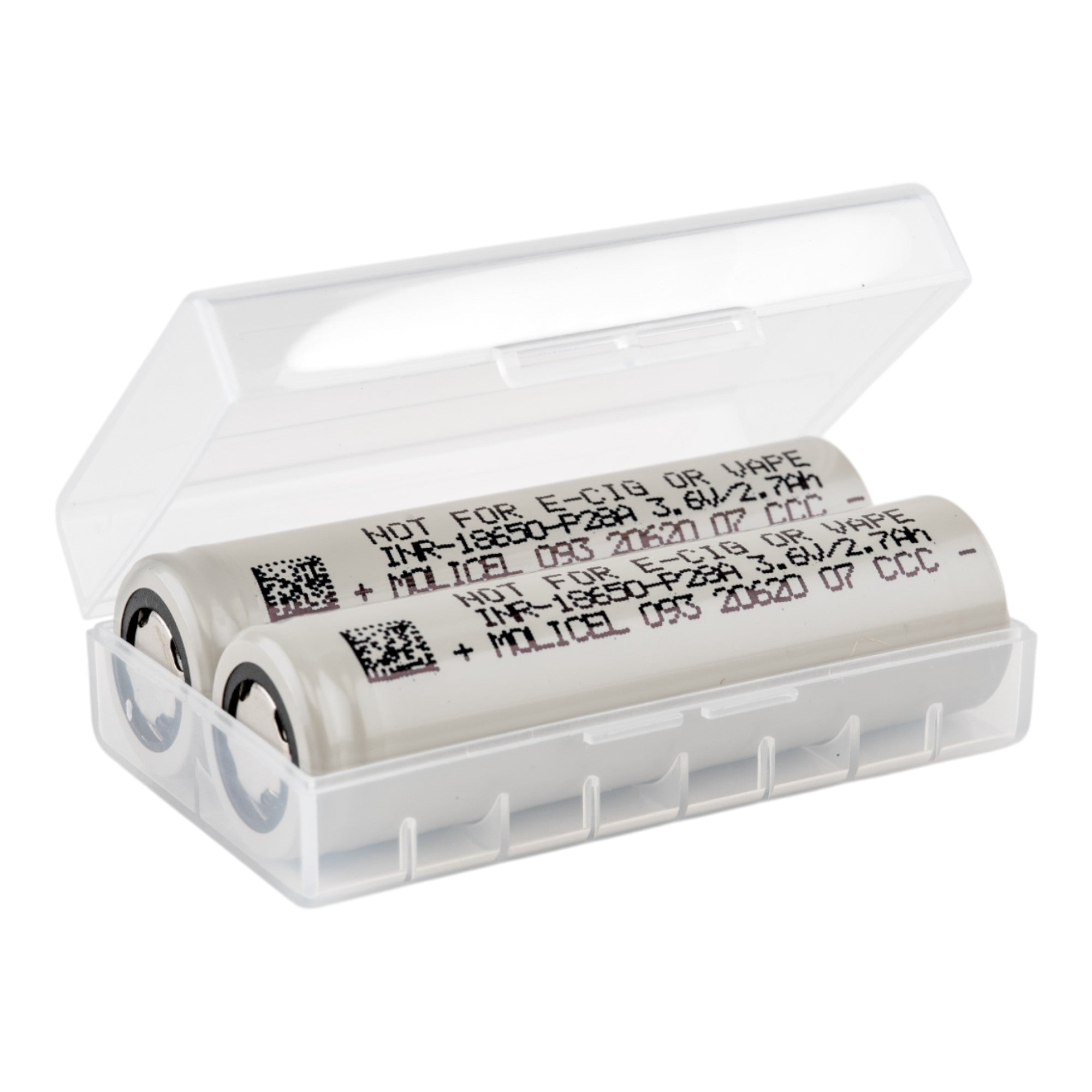

- Storage & Transport: Always store batteries in protective cases or boxes to prevent accidental contact with metal objects. Never store loose batteries in pockets, purses, bags, or near conductive materials.
- Inspection: Do not use if the PVC wrapper, terminal insulator, or casing is damaged, dented, leaking, or bulging. These are signs of internal damage or instability, and continued use could result in failure, fire, or explosion.
- Charging: Use a smart charger designed specifically for lithium-ion batteries and ensure that the charger's voltage matches the battery's specifications. Never overcharge, over-discharge, or leave unattended while charging.
- Prohibited Activities: Do not short circuit, modify, puncture, crush, expose to liquids, or solder directly onto the battery (spot weld only).
- Emergency Response: If the battery shows signs of thermal runaway (e.g., smoke, swelling, or heat), immediately stop use and move it to a non-flammable surface (e.g., concrete or sand). For fires, use a Class D fire extinguisher or sand—never use water.
