Key Features
- High 5000mAh Capacity: Supports longer operating times in high-demand systems.
- Extreme 60A Output: Built to handle intense power requirements with confidence.
- Efficient Power Delivery: Low impedance design minimizes energy loss and excess heat.
- Modern 21700 Cell: Delivers higher energy density than older lithium-ion formats.
- Molicel Engineering: Manufactured to strict quality standards for reliability and consistency.
Overview

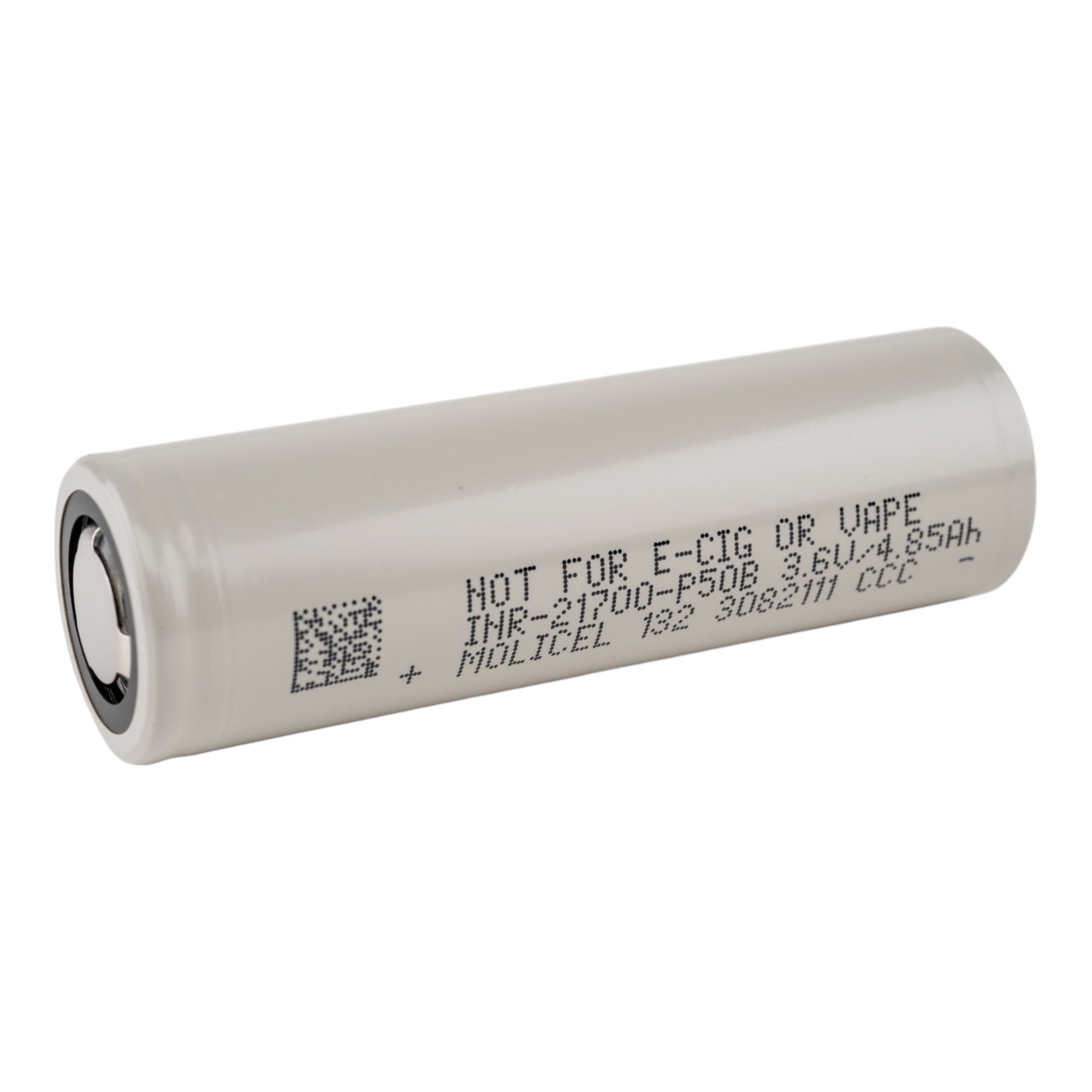

The Molicel P50B is a high-performance 21700 lithium-ion battery developed for applications that demand both exceptional power and long runtime. With a 5000mAh capacity and the ability to deliver up to 60A continuous discharge, this cell is ideal for advanced electric mobility, aerospace systems, and high-power backup solutions when integrated into properly protected battery packs.
Applications / Uses
- Electric and hybrid vehicle battery systems
- Motorsports and performance electric platforms
- Drones, UAVs, and vertical take-off aircraft
- Backup battery units for data and computing systems
- Professional-grade energy storage solutions
Specifications
| Manufacturer: | Molicel |
| Model: | P50B |
| Size: | 21700 |

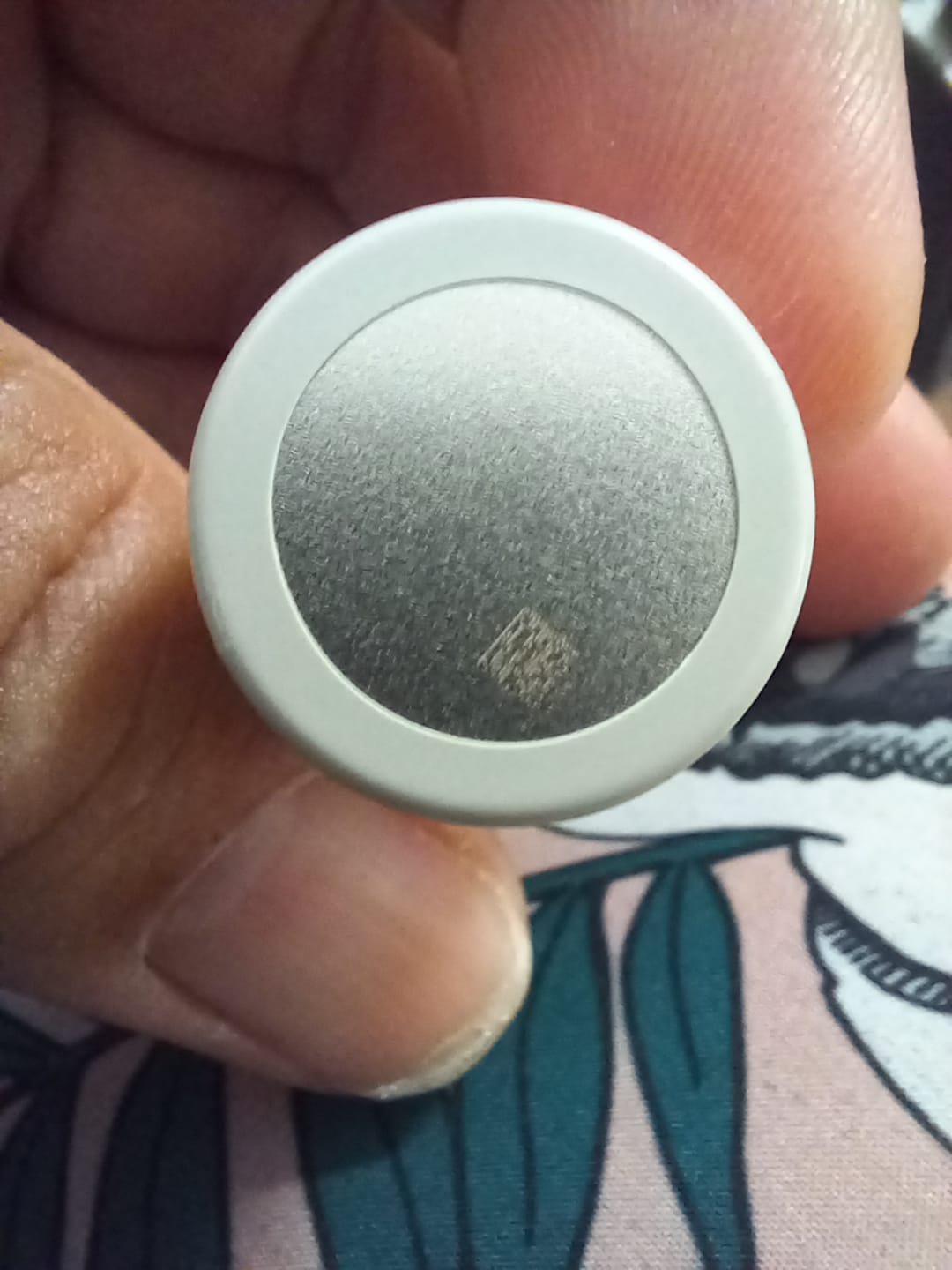

| Positive Terminal: | Flat Top |
| Nominal Capacity: | 5000mAh |
| Continuous Discharge Rating (max): | 60A |
| Nominal Voltage: | 3.6V |
| Maximum Voltage: | 4.2V |
| Discharge Cut-off Voltage: | 2.5V |
| Protected: | No |
| Rechargeable: | Yes |
| Approx. Dimensions: | 21.55mm x 70.15mm |
| Approx. Weight: | 70g |
⚠ Important Safety Warnings
Improper handling or misuse of this lithium-ion battery can result in FIRE, EXPLOSION, or THERMAL RUNAWAY, causing personal injury, property damage, or death. Users must read and follow all safety guidelines before purchase and use. Click here to review the full safety guidelines.
- Critical Warning: Never carry loose batteries in your pocket, purse, or bag. Loose batteries can come into contact with metal objects like keys or coins, causing a short circuit, which may result in severe burns, fire, or explosion. Always store or transport batteries in a protective case or box.
- Intended Use: This battery is designed for integration into protected battery packs with a Battery Management System (BMS) or Protection Circuit Board (PCB). It is not intended for standalone use or use in devices such as e-cigarettes or vaporizers.
-
What is Thermal Runaway?
- A dangerous chain reaction where heat generated by a failing battery causes it to overheat further, potentially leading to fire or explosion.
- Causes: Overcharging, short circuits, physical damage, or exposure to high temperatures.
- Prevention: Use a smart charger, avoid physical damage, and store batteries in a cool, dry place.
- Storage & Transport: Always store batteries in protective cases or boxes to prevent accidental contact with metal objects. Never store loose batteries in pockets, purses, bags, or near conductive materials.
- Inspection: Do not use if the PVC wrapper, terminal insulator, or casing is damaged, dented, leaking, or bulging. These are signs of internal damage or instability, and continued use could result in failure, fire, or explosion.
- Charging: Use a smart charger designed specifically for lithium-ion batteries and ensure that the charger's voltage matches the battery's specifications. Never overcharge, over-discharge, or leave unattended while charging.
- Prohibited Activities: Do not short circuit, modify, puncture, crush, expose to liquids, or solder directly onto the battery (spot weld only).
- Emergency Response: If the battery shows signs of thermal runaway (e.g., smoke, swelling, or heat), immediately stop use and move it to a non-flammable surface (e.g., concrete or sand). For fires, use a Class D fire extinguisher or sand—never use water.
Disclaimer
IMR Batteries is not responsible for any damages, injuries, or claims arising from improper use, handling, or failure to follow these safety guidelines. Lithium-ion batteries require strict adherence to all safety protocols.
It is the reseller's responsibility to ensure all product warnings and safety guidelines are effectively communicated to their customers. Some cells are sold in bulk packaging and are not individually packaged. Resellers must provide appropriate packaging for each individual cell sold and must not distribute cells loose, unprotected, or without a proper storage box or case.
Product compatibility is the sole responsibility of the customer. IMR Batteries does not guarantee compatibility with any specific device or application. We are not responsible for the design, assembly, performance, or safety of any battery pack constructed using our cells. It is the customer’s responsibility to ensure proper cell matching, protection circuitry, configuration, and safe construction practices. Users and resellers assume full responsibility for the safe handling, usage, and distribution of this product.
