Description
Upgrade your charging experience with the GYRFALCON All-88, a versatile 8-channel battery charger designed to accommodate a variety of battery types, including lithium-ion, NiMh, NiCd, and LiFePO4. This charger supports an extensive range of sizes, from smaller 10340 cells to larger 32650 lithium batteries, along with common household NiMh/NiCd sizes like AA, AAA, and C. Each of the eight bays operates independently, offering adjustable charging speeds of up to 1A per channel, even for larger cells like 20700, 21700, and 26650. Packed with advanced safety features such as overcharge protection, reverse polarity detection, and short circuit prevention, the GYRFALCON All-88 delivers safe and efficient charging for all your battery needs.
Before using this charger, please read the manual carefully to understand how to set the correct termination voltage for your specific batteries. Proper settings are crucial for safety and performance.
Key Features:
- Universal Compatibility: Supports a wide range of battery types, including Li-ion, NiMh, NiCd, and LiFePO4, with sizes ranging from 10340 to 32650 and common sizes like AA, AAA, and C.
- Independent Charging Channels: Eight fully adjustable charging slots allow simultaneous charging with individually set speeds, supporting up to 1A per channel.
- Advanced Safety Features: Built with overcharge protection, reverse polarity detection, and short circuit prevention to ensure safe and reliable operation.
- Selectable Output Voltage: Offers multiple termination voltage options, including Ni-MH 1.5V, LiFePO4 3.6V, and Li-ion voltages of 4.2V, 4.3V, and 4.35V to meet specific battery requirements.
- Optimized for Large Cells: Ideal for charging high-capacity batteries, capable of handling eight 26650, 21700, or 20700 cells simultaneously, making it suitable for demanding applications.
Compatible With:
Supports a wide variety of batteries, including:
3.6V/3.7V Lithium-Ion: 10340, 10350, 10440, 10500, 12340, 12500, 12650, 13450, 13500, 13650, 14350, 14430, 14500, 14650, 16500, 16340, 16650, 17350, 17500, 17650, 17670, 18350, 18490, 18500, 18650, 18700, 20700, 21700, 22500, 22650, 25500, 26500, 26650.
NiMh/NiCd: AA, AAA, C, D.
Technical Specifications:
- Input: DC 5V 2A
- Output Current: 0.1A / 0.25A / 0.5A / 1A
- Output Voltage: Ni-MH 1.5V, LiFePO4 3.6V, Li-ion 4.2V / 4.3V / 4.35V
- USB Output: 5.0-5.5V 1A
- Compatible Battery Sizes: ✔ 18650, ✔ 20700, ✔ 21700
- AC Input: Standard USA Power Plug

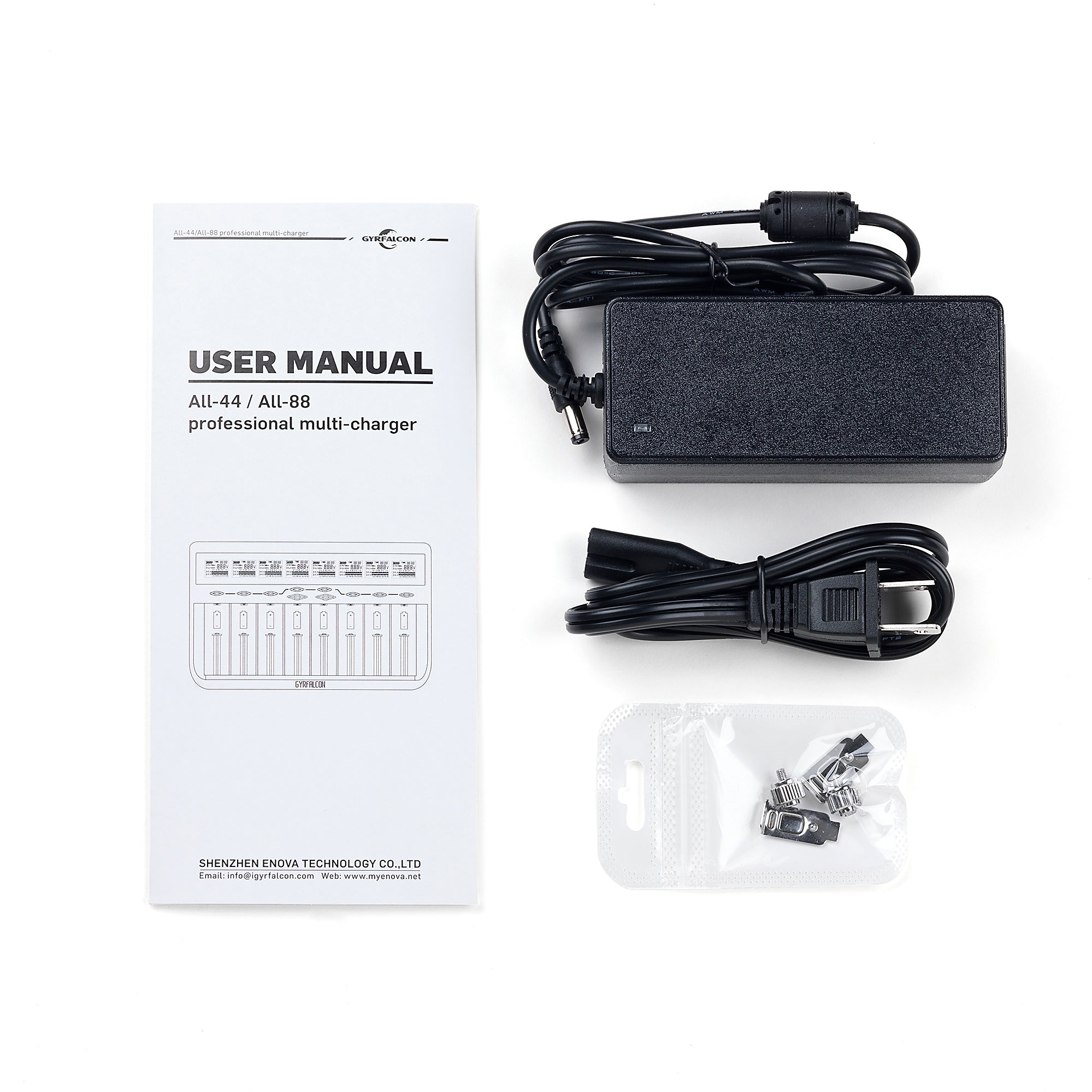

What's in the Box:

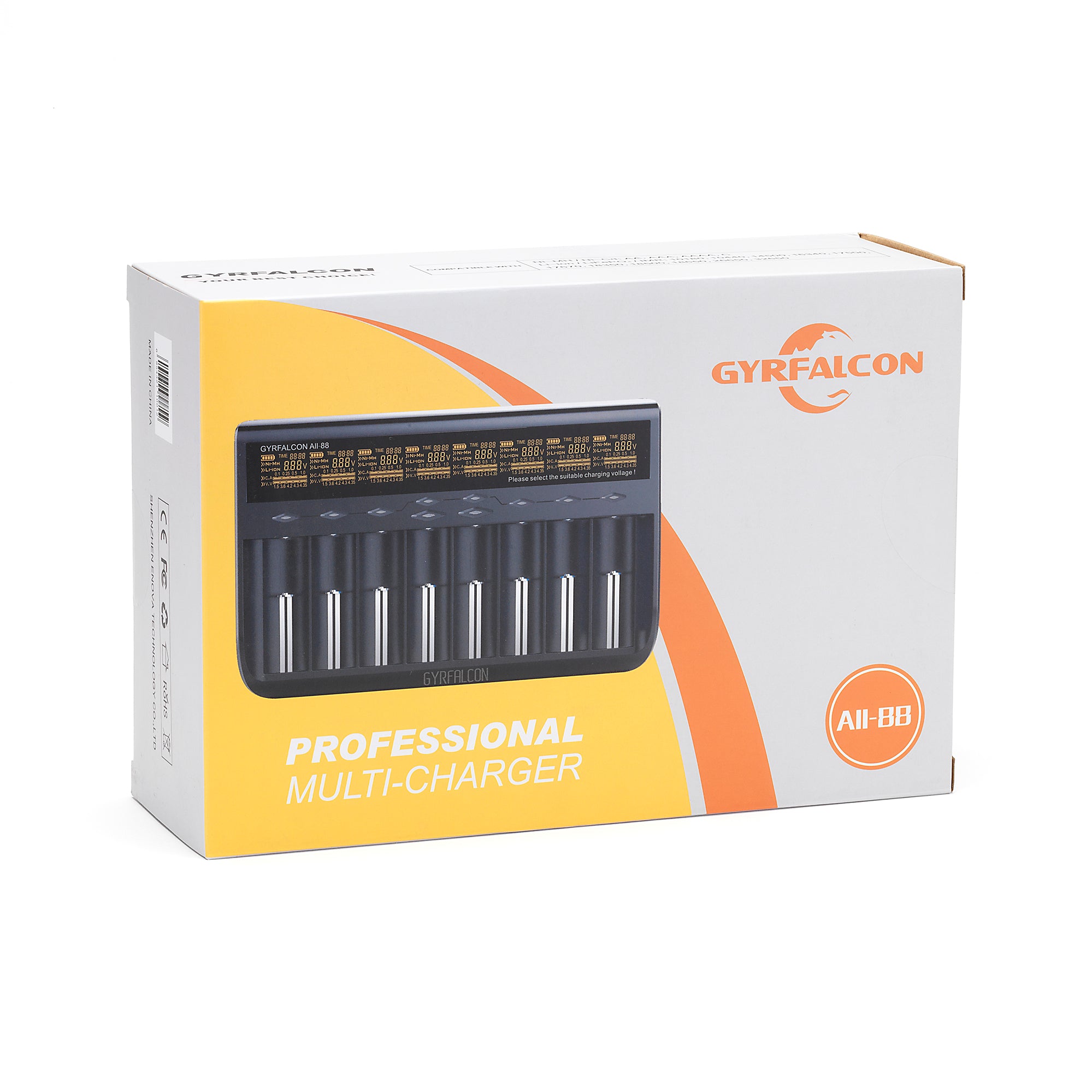

- GYRFALCON All-88 8-Bay Battery Charger
- Standard USA Power Plug
- User Manual
- Warranty Card
⚠ Important Safety Warnings
Improper use of a battery charger can result in overcharging, short circuits, or damage to the battery, causing FIRE, EXPLOSION, or ELECTRICAL SHOCK. Users must follow all safety guidelines to ensure proper operation. Click here to review the full safety guidelines.
-
Device Compatibility:
- Use the charger only for compatible battery types and sizes as specified by the charger manufacturer. Ensure the charger is appropriate for the battery chemistry, size, and protection status (e.g., unprotected or protected cells).
- Do not charge non-rechargeable batteries (e.g., alkaline or primary cells).
-
Proper Use:
- Only charge batteries in a fireproof or non-flammable area. Avoid charging on beds, couches, or other flammable surfaces.
- Do not force a battery into the charger slot if it does not fit properly. This can damage the charger or battery and may result in unsafe charging conditions.
- Inspect batteries before charging: Do not charge if the battery casing, wrapper, or terminals are damaged, dented, leaking, or bulging.
- Never leave batteries unattended while charging. Monitor the charging process, and unplug the charger when charging is complete.
- Avoid exposing the charger to liquids, high heat, or direct sunlight.
-
Inspection:
- Do not use the charger if the power cord, plug, or device is damaged.
- Inspect both the charger and the battery for any signs of damage before use.
-
Storage & Handling:
- Keep the charger away from children and pets.
- When not in use, unplug the charger and store it in a cool, dry place.
-
Prohibited Activities:
- Do not modify or disassemble the charger.
- Do not attempt to repair a damaged charger—replace it with a new one.
- Avoid using extension cords or adapters that exceed the manufacturer’s recommendations.
-
Emergency Response:
- If the charger or battery emits smoke, sparks, or a burning smell, disconnect the power immediately and move the battery and charger to a safe area.
- In case of fire, use a Class D fire extinguisher or sand to extinguish the flames.
Disclaimer
IMR Batteries is not responsible for any damages, injuries, or claims arising from improper use, handling, or failure to follow these safety guidelines. Battery chargers must only be used with compatible battery types and operated in accordance with manufacturer instructions. It is the reseller's responsibility to ensure all safety warnings and product guidelines are effectively communicated to their customers. Users and resellers assume full responsibility for the safe handling, usage, and distribution of this product.
