Key Features
- Massive 3500mAh capacity keeps your devices running longer between charges
- Built-in protection circuit safeguards against overcurrent, over-discharge, and overcharge
- Button top design fits a wide range of compatible devices right out of the box
- Consistent minimum capacity of 3400mAh — no unpleasant surprises in real-world use
- Standard 18650 size makes sourcing replacements and spares simple and affordable
Overview

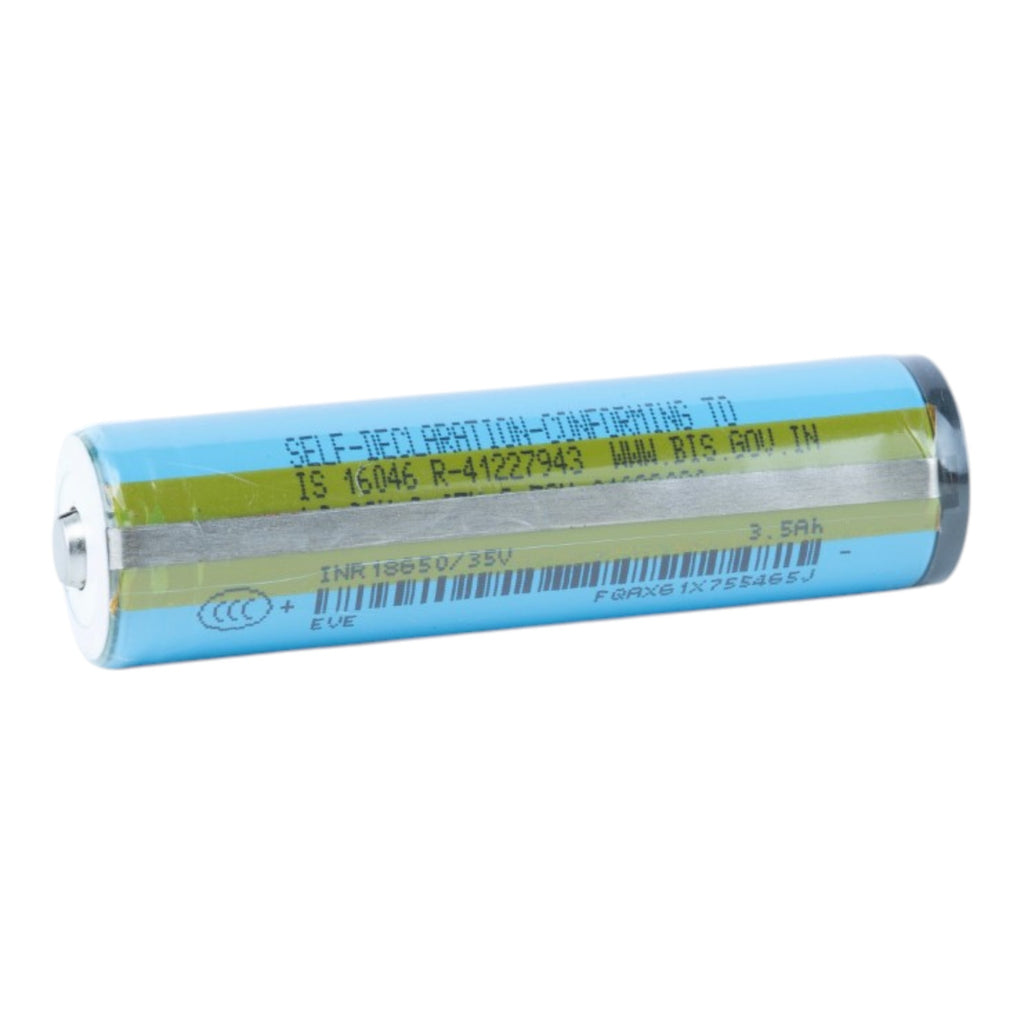

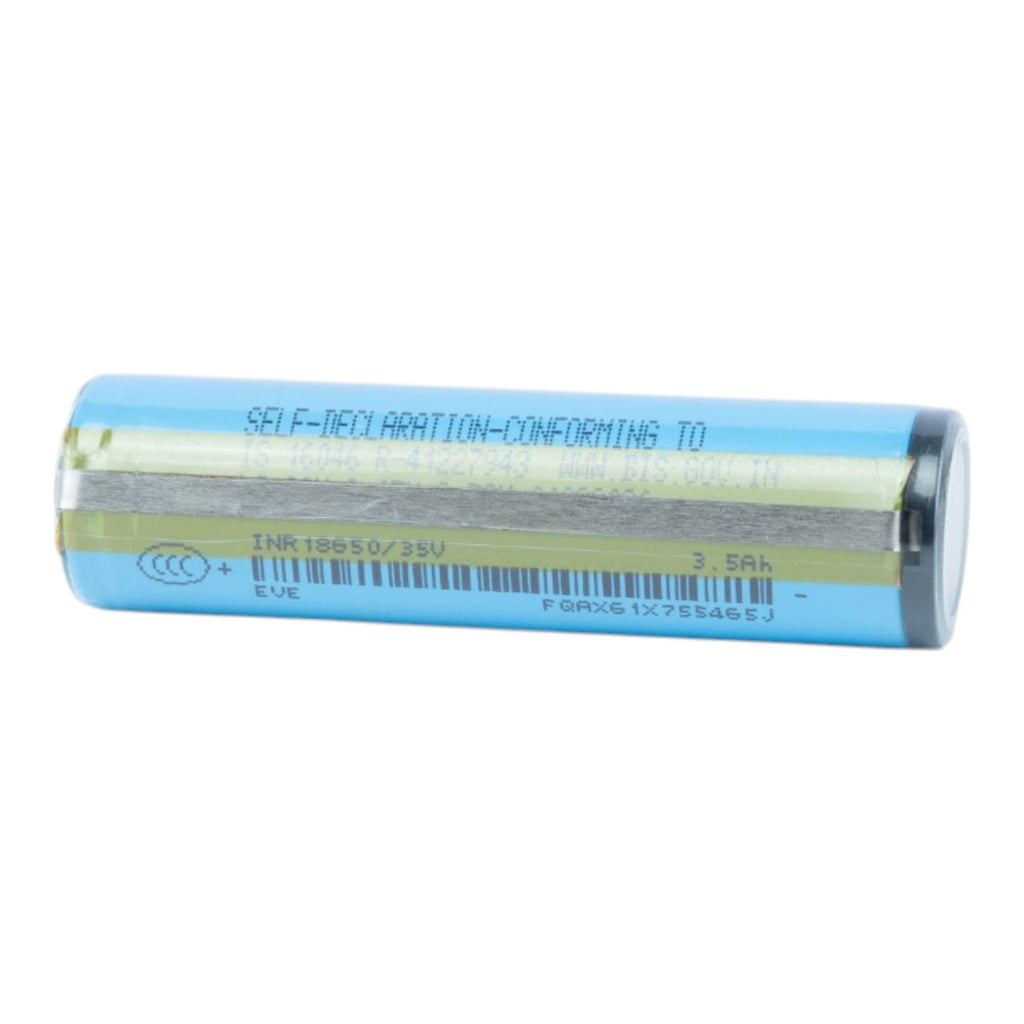

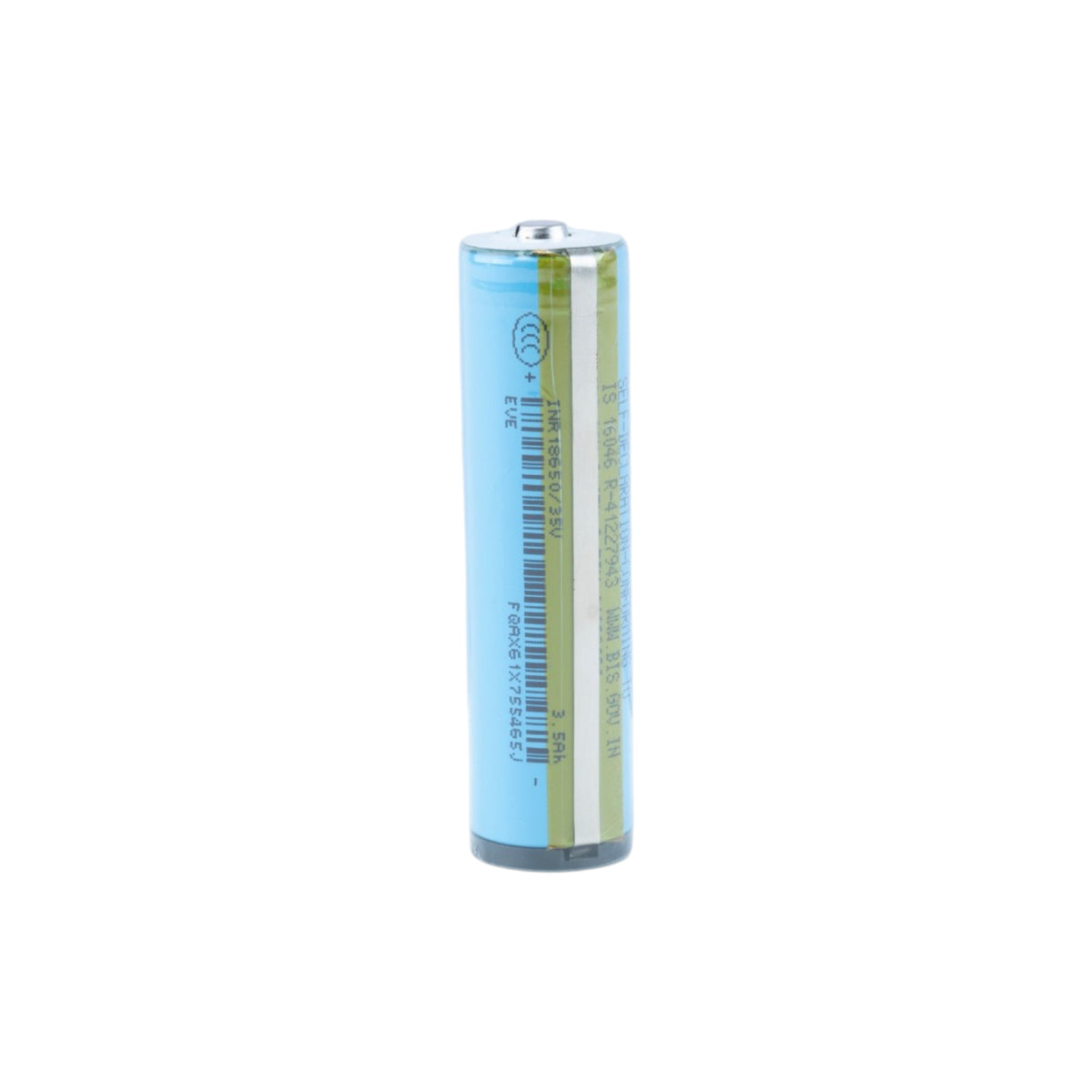

If you need a dependable rechargeable cell that goes the distance, the INR18650-35V delivers. With a generous 3500mAh typical capacity and a button top that slips easily into compatible devices, this protected 18650 cell is built to handle everyday demands without cutting corners on safety. Its onboard Battery Management System quietly monitors the discharge current and keeps it capped at 5A, so you get consistent, worry-free power whether you're topping up a flashlight, a radio, or a portable pack. Charge it up to 4.20V and run it down to a safe 2.5V — the cell handles the rest.
Applications / Uses
- High-capacity flashlights and outdoor lighting equipment
- Portable battery packs and power banks
- Handheld two-way radios and field communication tools
- Hobby electronics and remote-controlled devices
- Camping lanterns, headlamps, and off-grid accessories
Specifications
| Specification | Value |
|---|---|
| Model | INR18650-35V |
| Size (approx.) | Ø 18.35mm × 69.3mm (incl. button top) |
| Positive cap | Button top |
| Nominal voltage | 3.60V |
| End-of-charge voltage | 4.20V |
| End-of-discharge voltage | 2.5V |
| Typical capacity | 3500mAh (0.2C discharge) |
| Minimum capacity | 3400mAh |
| Weight (approx.) | 48.5g |
| Max continuous discharge current | 5A (limited by BMS) |
| Protection | Protected |
⚠ Important Safety Warnings
Improper handling or misuse of this lithium-ion battery can result in FIRE, EXPLOSION, or THERMAL RUNAWAY, causing personal injury, property damage, or death. Users must read and follow all safety guidelines before purchase and use. Click here to review the full safety guidelines.
- Critical Warning: Never carry loose batteries in your pocket, purse, or bag. Loose batteries can come into contact with metal objects like keys or coins, causing a short circuit, which may result in severe burns, fire, or explosion. Always store or transport batteries in a protective case or box.
- Intended Use: This battery is designed for integration into protected battery packs with a Battery Management System (BMS) or Protection Circuit Board (PCB). It is not intended for standalone use or use in devices such as e-cigarettes or vaporizers.
-
What is Thermal Runaway?
- A dangerous chain reaction where heat generated by a failing battery causes it to overheat further, potentially leading to fire or explosion.
- Causes: Overcharging, short circuits, physical damage, or exposure to high temperatures.
- Prevention: Use a smart charger, avoid physical damage, and store batteries in a cool, dry place.
- Storage & Transport: Always store batteries in protective cases or boxes to prevent accidental contact with metal objects. Never store loose batteries in pockets, purses, bags, or near conductive materials.
- Inspection: Do not use if the PVC wrapper, terminal insulator, or casing is damaged, dented, leaking, or bulging. These are signs of internal damage or instability, and continued use could result in failure, fire, or explosion.
- Charging: Use a smart charger designed specifically for lithium-ion batteries and ensure that the charger's voltage matches the battery's specifications. Never overcharge, over-discharge, or leave unattended while charging.
- Prohibited Activities: Do not short circuit, modify, puncture, crush, expose to liquids, or solder directly onto the battery (spot weld only).
- Emergency Response: If a cell shows signs of thermal runaway (smoke, swelling, hissing, or heat), stop use immediately and, if it can be done safely, move it to a non-flammable surface (e.g., concrete or sand) away from combustibles. Lithium-ion cell fires are Class B fires — use an ABC/dry-chemical extinguisher, or douse with large amounts of water to cool the cell and prevent spread. Do not rely on a small spray; thorough cooling is required, and cells can reignite from residual heat, so monitor the area afterward. (Class D extinguishers are for lithium-metal batteries, not lithium-ion.) For any fire beyond a single small cell, evacuate and call emergency services.
Disclaimer
IMR Batteries is not responsible for any damages, injuries, or claims arising from improper use, handling, or failure to follow these safety guidelines. Lithium-ion batteries require strict adherence to all safety protocols.
It is the reseller's responsibility to ensure all product warnings and safety guidelines are effectively communicated to their customers. Some cells are sold in bulk packaging and are not individually packaged. Resellers must provide appropriate packaging for each individual cell sold and must not distribute cells loose, unprotected, or without a proper storage box or case.
Product compatibility is the sole responsibility of the customer. IMR Batteries does not guarantee compatibility with any specific device or application. We are not responsible for the design, assembly, performance, or safety of any battery pack constructed using our cells. It is the customer’s responsibility to ensure proper cell matching, protection circuitry, configuration, and safe construction practices. Users and resellers assume full responsibility for the safe handling, usage, and distribution of this product.
