Description

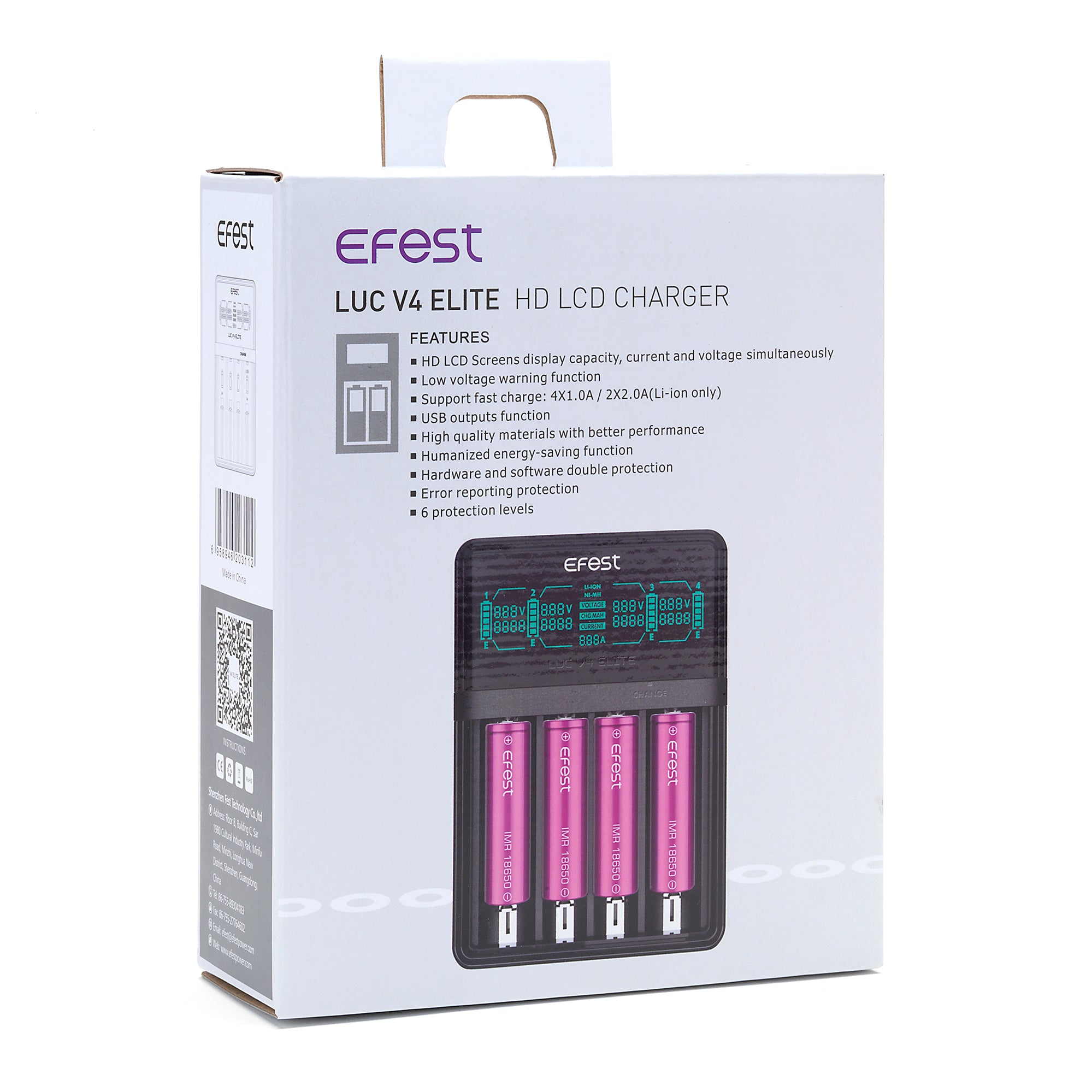

Take your charging experience to the next level with the Efest LUC V4 Elite HD LCD 4-Channel Battery Charger. An upgraded version of the classic LUC V4, this charger features an expanded HD LCD display and advanced functionalities designed to streamline battery management. Whether you’re a tech enthusiast or a professional, the LUC V4 Elite provides precision and convenience with its real-time monitoring of capacity, current, and voltage. Its fast-charging capability and wide compatibility make it the ultimate solution for lithium-ion and NiMH/Ni-Cd batteries.
Key Features:
- Enhanced HD LCD Display: A larger, high-definition screen offers real-time insights into battery capacity, charging current, and voltage, providing precise control over the charging process.
- Customizable Charging Rates: Select from multiple modes including 0.25A, 0.5A, 1.0A, and 2.0A for lithium-ion batteries, and 0.25A or 0.5A for NiMH/Ni-Cd batteries to suit your specific needs.
- Rapid Charging Capability: Features 2A fast charging for high-capacity lithium batteries in slots 1 and 4, reducing downtime without compromising battery health.
- Wide Compatibility: Supports a range of battery types and sizes, including 10440, 14500, 18650, 21700 lithium batteries, as well as A, AA, AAA, SC, and C NiMH/Ni-Cd batteries.
- Advanced Safety Features: Includes a low-voltage warning and automatic cut-off to prevent overcharging, ensuring safe and reliable operation.
Battery Compatibility:
Compatible with:
- 3.6V/3.7V Lithium-Ion IMR Batteries – 10440, 14500, 14650, 16340, 16650, 17650, 17670, 18350, 18490, 18500, 18650, 20700, 21700, 22650, 25500, 26500, 26650.
- NiMH/NiCd 1.2V batteries – A, AA, AAA, SC, C.
Technical Specifications:
- Input: AC 100V-240V 50/60Hz
-
Output:
- Li-ion: 4.2V = 4x0.25A / 4x0.5A / 4x1.0A / 2x2.0A
- NiMH/Ni-Cd: 1.5V = 4x0.25A / 4x0.5A
- Auto Cutoff Voltage: 4.20V ± 0.05V
- DC Input Power: DC 12V 2A
- Battery Compatibility: ✔ 18650, ✔ 20700, ✔ 21700
- AC Input: Standard USA power plug

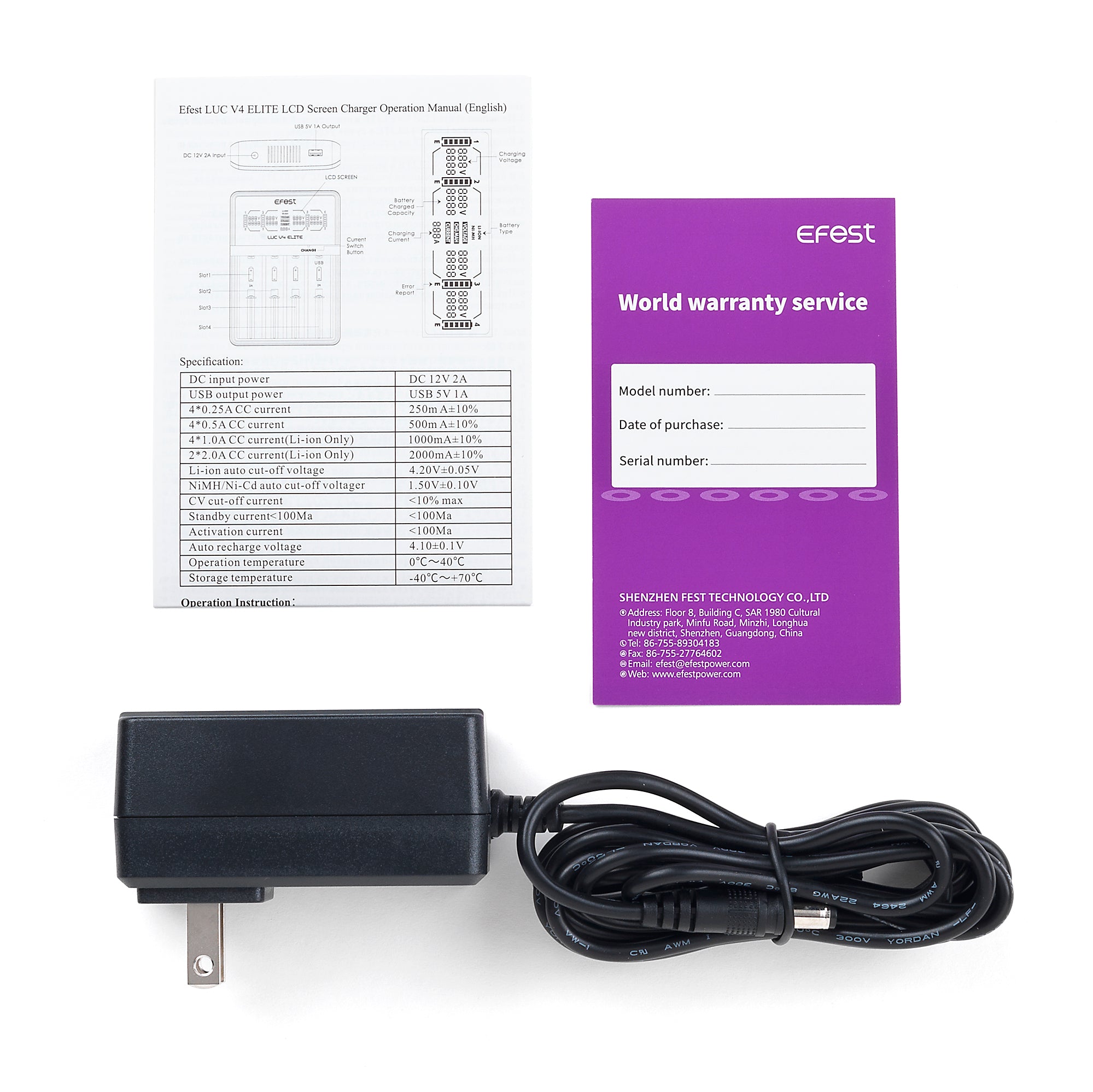

What’s in the Box:
- Efest LUC V4 Elite HD LCD battery charger
- AC/DC Adapter
- Scratch-off validation serial number
- User Manual (in multiple languages)
- Warranty Service Card
⚠ Important Safety Warnings
Improper use of a battery charger can result in overcharging, short circuits, or damage to the battery, causing FIRE, EXPLOSION, or ELECTRICAL SHOCK. Users must follow all safety guidelines to ensure proper operation. Click here to review the full safety guidelines.
-
Device Compatibility:
- Use the charger only for compatible battery types and sizes as specified by the charger manufacturer. Ensure the charger is appropriate for the battery chemistry, size, and protection status (e.g., unprotected or protected cells).
- Do not charge non-rechargeable batteries (e.g., alkaline or primary cells).
-
Proper Use:
- Only charge batteries in a fireproof or non-flammable area. Avoid charging on beds, couches, or other flammable surfaces.
- Do not force a battery into the charger slot if it does not fit properly. This can damage the charger or battery and may result in unsafe charging conditions.
- Inspect batteries before charging: Do not charge if the battery casing, wrapper, or terminals are damaged, dented, leaking, or bulging.
- Never leave batteries unattended while charging. Monitor the charging process, and unplug the charger when charging is complete.
- Avoid exposing the charger to liquids, high heat, or direct sunlight.
-
Inspection:
- Do not use the charger if the power cord, plug, or device is damaged.
- Inspect both the charger and the battery for any signs of damage before use.
-
Storage & Handling:
- Keep the charger away from children and pets.
- When not in use, unplug the charger and store it in a cool, dry place.
-
Prohibited Activities:
- Do not modify or disassemble the charger.
- Do not attempt to repair a damaged charger—replace it with a new one.
- Avoid using extension cords or adapters that exceed the manufacturer’s recommendations.
-
Emergency Response:
- If the charger or battery emits smoke, sparks, or a burning smell, disconnect the power immediately and move the battery and charger to a safe area.
- In case of fire, use a Class D fire extinguisher or sand to extinguish the flames.
Disclaimer
IMR Batteries is not responsible for any damages, injuries, or claims arising from improper use, handling, or failure to follow these safety guidelines. Battery chargers must only be used with compatible battery types and operated in accordance with manufacturer instructions. It is the reseller's responsibility to ensure all safety warnings and product guidelines are effectively communicated to their customers. Users and resellers assume full responsibility for the safe handling, usage, and distribution of this product.
